Shared projects

20170325-1648 power-LMR62014-v1.1.zip

by summivox.
Top
Bottom

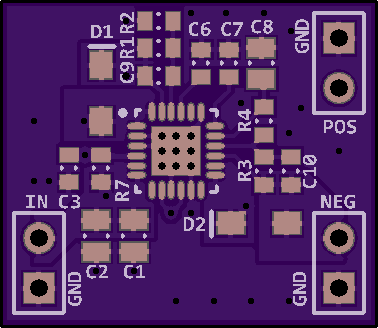

2 layer board of 0.85x0.73 inches (21.62x18.44 mm).
Shared on March 25th, 2017 23:49.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

20161229-1609 headphone-USB-v2.0.zip

by summivox.
Top
Bottom

4 layer board of 1.26x1.43 inches (31.90x36.35 mm).
Shared on February 23rd, 2017 08:17.

XHRA-2HPA-TQ64 minimal system board

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

20170112-0057 CY7C68013-v1.0.zip

by summivox.
Top
Bottom

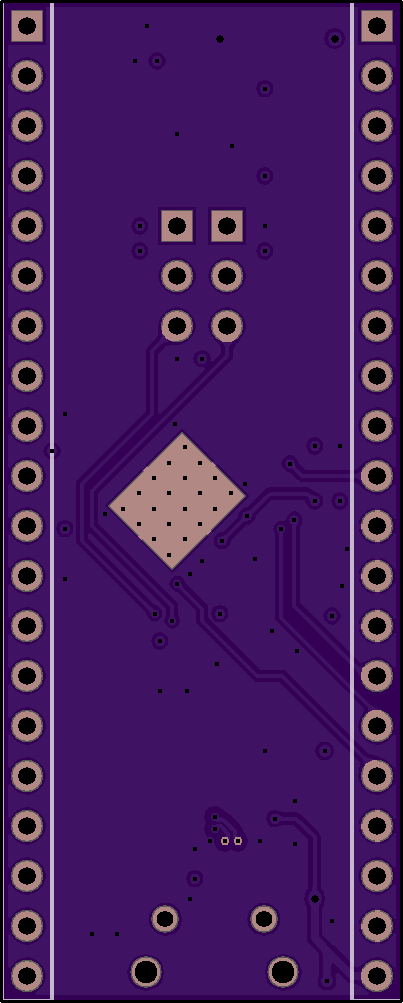

4 layer board of 0.81x2.01 inches (20.47x50.95 mm).
Shared on January 24th, 2017 22:02.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

20170101-1833 power-TPS7A47-v1.0.zip

by summivox.
Top
Bottom

2 layer board of 0.71x0.48 inches (17.93x12.22 mm).
Shared on January 2nd, 2017 04:08.

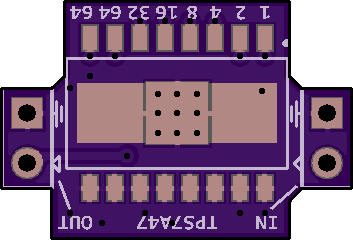

Simple TPS7A4700/TPS7A4701 breakout with DIP switch controlling output voltage.

Output voltage = 1.4 V + (sum of DIP) × 0.1 V

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

20170101-1710 power-TPS65131-v1.0.zip

by summivox.
Top
Bottom

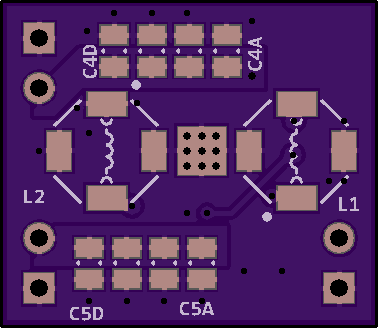

2 layer board of 0.76x0.66 inches (19.20x16.69 mm).
Shared on January 2nd, 2017 04:08.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
