GPS Daughter board for GL.inet AR150 V0.1b
by
takigama.
2
layer board of
1.21x0.76
inches
(30.66x19.41
mm).
Shared on
June 8th, 2017 16:47.
Primarily designed to support NTP using GPS with PPS in a really small form factor utilising the Quectel L80 GPS (tiny!). This board will sit off the AR150’s headers and a custom firmware will be needed - which i will code when my parts arrive.

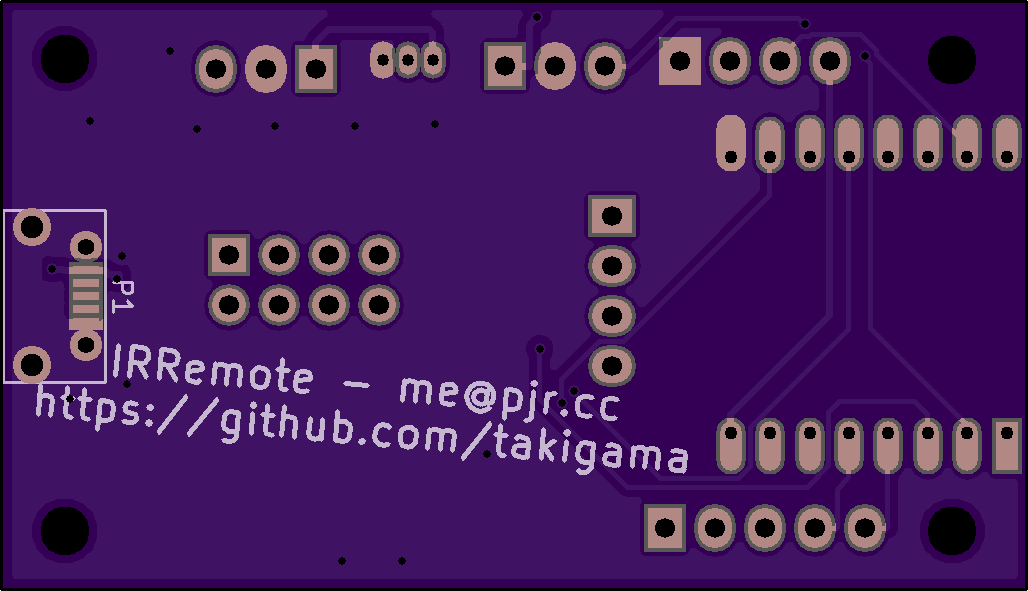

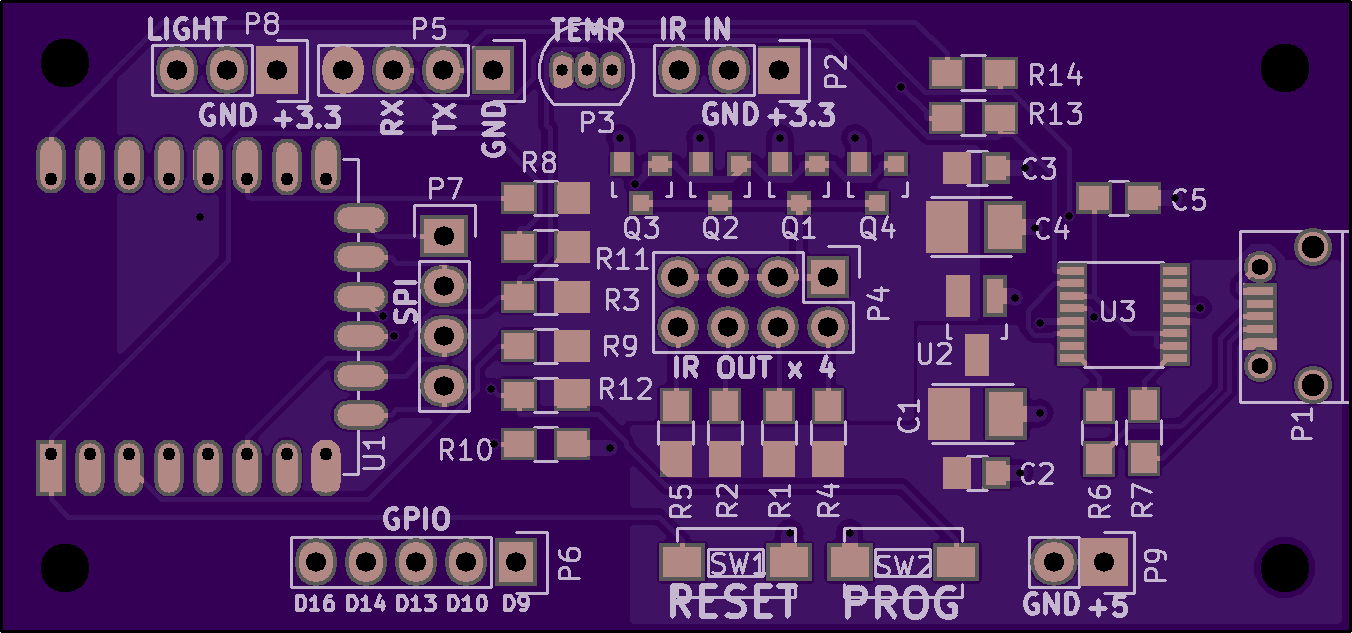

IR Remote + Temp + Light Sensor (ESP based) - 0.4 alpha
by
takigama.
2
layer board of
2.06x1.18
inches
(52.22x30.00
mm).
Shared on
April 6th, 2017 07:14.
Changes: Added Micro USB for power
Designed with mqtt and homie in mind.
see This link
very little code written for it yet

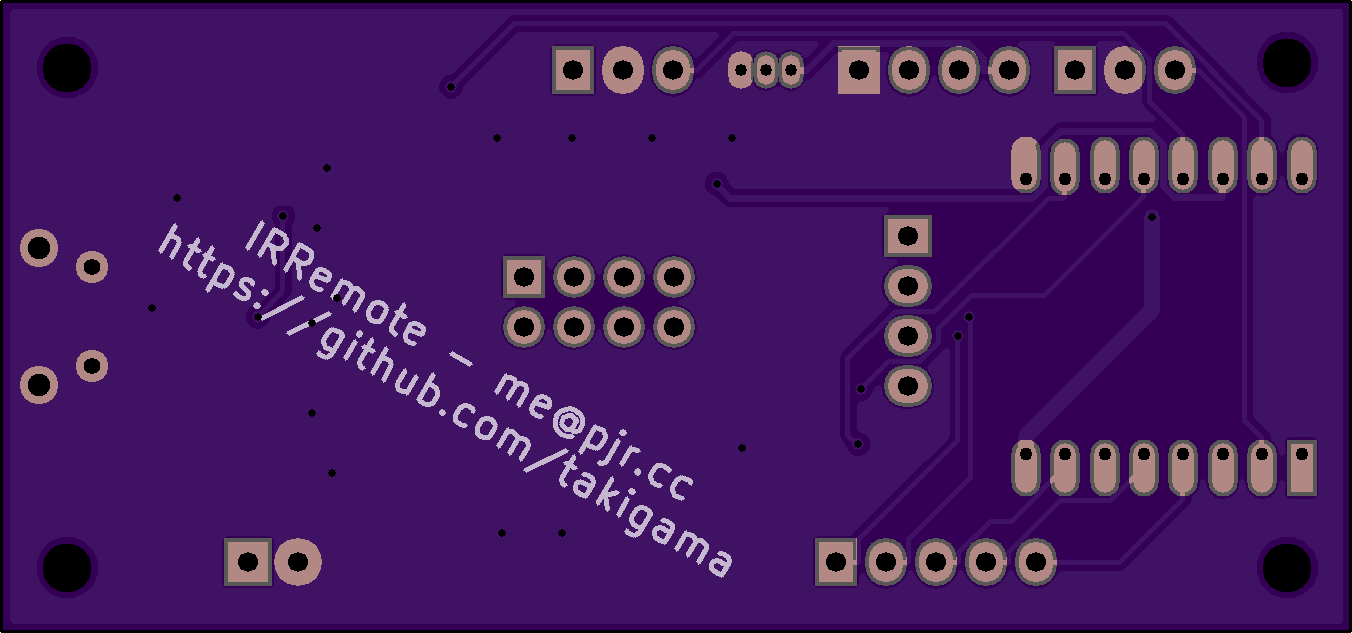

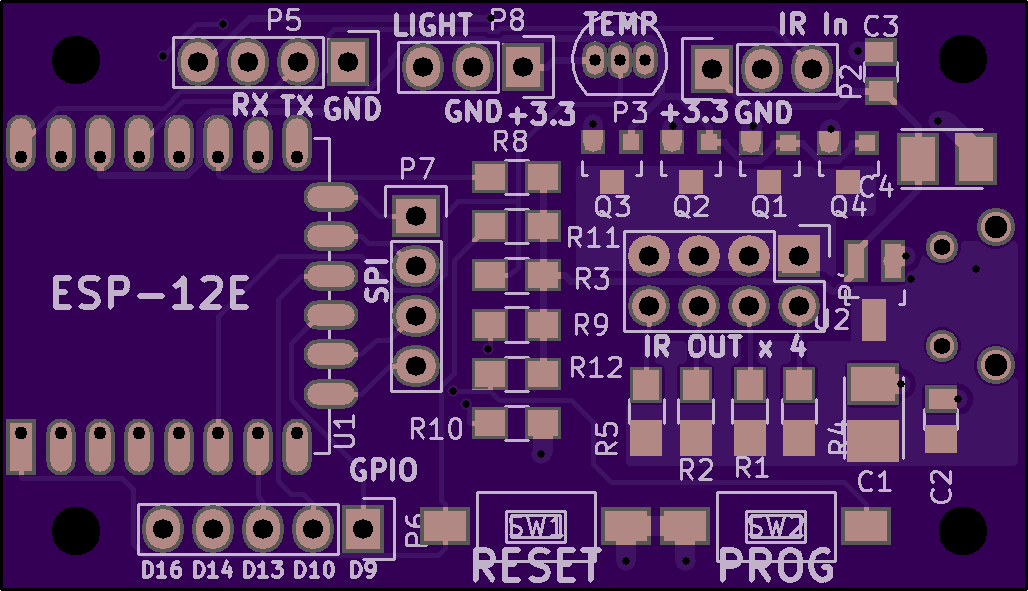

IR Remote + Temp + Light Sensor (ESP based) - 0.1 alpha
by
takigama.
2
layer board of
2.70x1.27
inches
(68.66x32.16
mm).
Shared on
March 12th, 2017 13:46.
Designed with mqtt and homie in mind.
see This link
Haven’t written the code for it yet

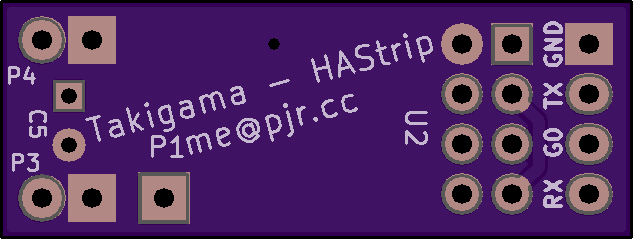

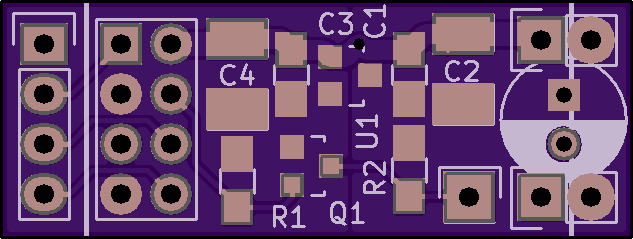

ESP8266, WS2813/2 v0.5
by
takigama.
2
layer board of
1.27x0.48
inches
(32.16x12.17
mm).
Shared on
February 10th, 2017 18:35.
v0.5 changes the tant cap pads.
V0.3 adds a UART header (also be used for a reset pin for homie)
Designed as a small daughter board for an ESP-01 to control a led strip, includes space for a 1000uf cap for the lights.
See https://github.com/takigama/HomeAutomationExperiments
Big cap goes on the underside of the board the power/control pins can either go up or down, but if they go up, must be angled.
Theres a BOM in the github for the components.

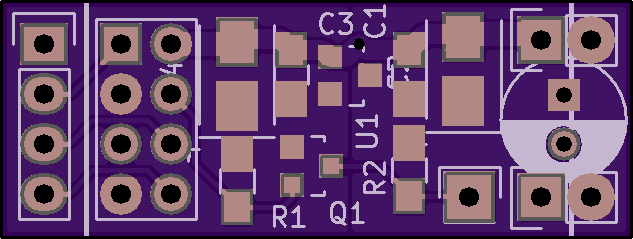

ESP8266, WS2813/2 v0.3
by
takigama.
2
layer board of
1.27x0.48
inches
(32.16x12.17
mm).
Shared on
January 26th, 2017 05:18.
V0.3 adds a UART header (also be used for a reset pin for homie)
Designed as a small daughter board for an ESP-01 to control a led strip, includes space for a 1000uf cap for the lights.
See https://github.com/takigama/HomeAutomationExperiments
Big cap goes on the underside of the board the power/control pins can either go up or down, but if they go up, must be angled.
Theres a BOM in the github for the components.
