20170529 DMX SNIFFER

by

2 layer board of 0.99x1.75 inches (25.07x44.45 mm).
Shared on May 29th, 2017 16:26.

Currently Untested

Copy this HTML into your page to embed a link to order this shared project

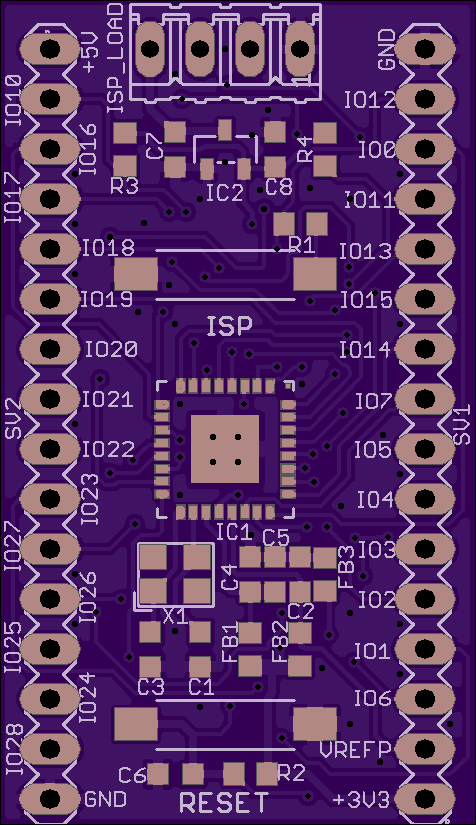

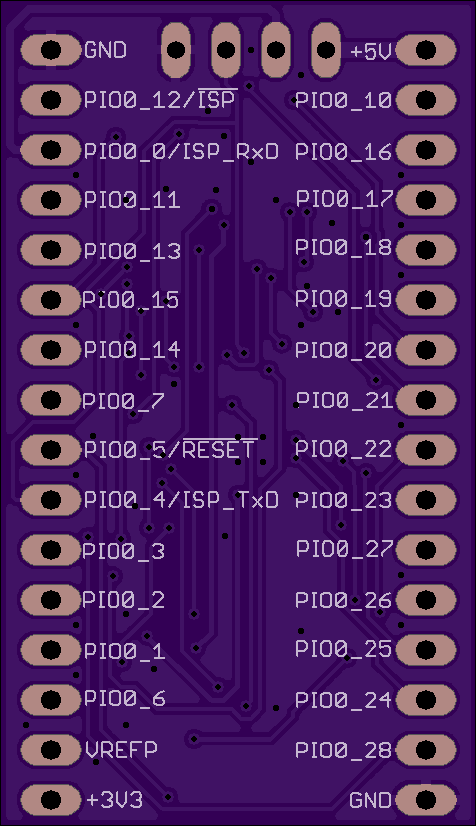

LPC824 Development Board

by

2 layer board of 0.95x1.65 inches (24.13x41.91 mm).
Shared on April 1st, 2017 10:05.

Development board for the NXP LPC824.

Software is downloaded using the boot loader over the serial port.

I designed this board to try out soldering a HVQFN33 and to play with the NXP LPC824 cotrex M0+ CPU.

NOTE: This is untested currently.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 0.79x0.80 inches (19.99x20.32 mm).
Shared on July 26th, 2016 12:43.

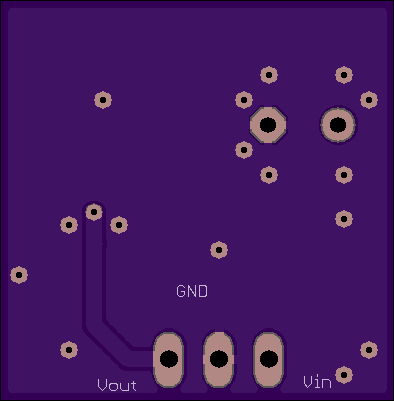

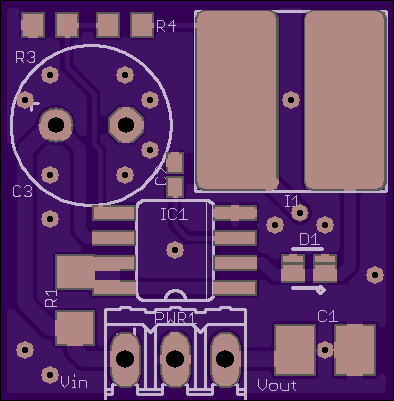

A 3.3 volt buck switching supply using a MC33063 regulator IC

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 2.60x1.59 inches (66.07x40.28 mm).
Shared on July 15th, 2016 07:16.

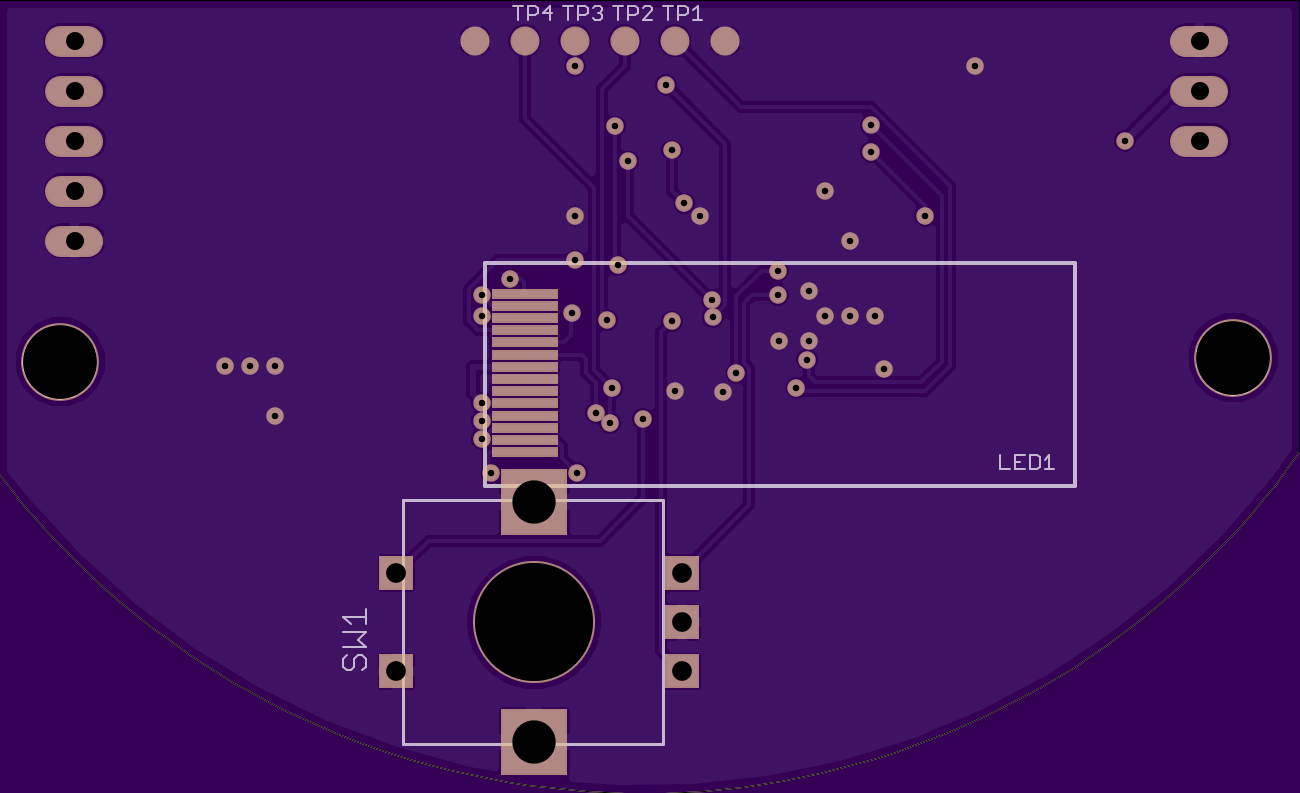

Pulse ECO replacement PCB

Note: Do not build this the OLED display footprint is wrong, its backwards.
