Shared projects

Narrow AAA sensor v2

by tlustoch.
Top
Bottom

2 layer board of 1.68x0.43 inches (42.67x10.80 mm).
Shared on March 15th, 2017 15:39.

Vcc regulator or battery powered, TMP, D2 D3 SDA SCL LED

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Narrow AAA sensor

by tlustoch.
Top
Bottom

2 layer board of 1.85x0.43 inches (46.99x10.80 mm).
Shared on November 9th, 2016 14:04.

D2 D3 TMP SDA SCL A0 A1 RGBLED

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

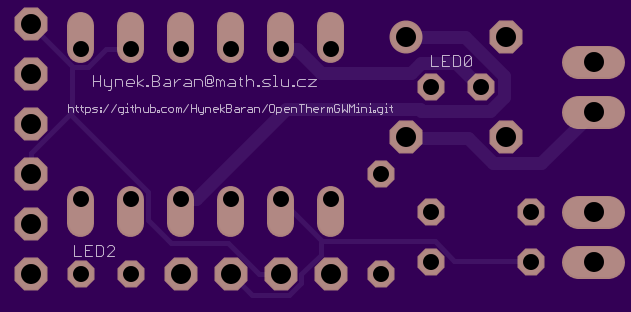

OpenTherm Boiler Interface

by tlustoch.
Top
Bottom

2 layer board of 1.26x0.63 inches (32.08x15.88 mm).
Shared on February 2nd, 2016 12:42.

https://github.com/HynekBaran/OpenThermGWMini.git

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

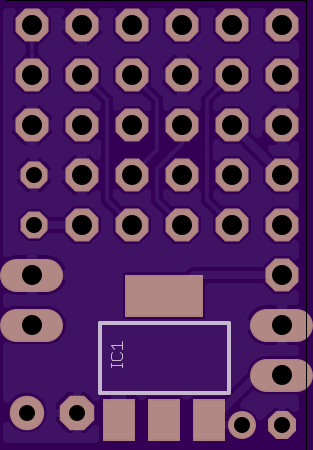

Raspi NRF24L01 header

by tlustoch.
Top
Bottom

2 layer board of 0.60x0.90 inches (15.27x22.89 mm).
Shared on January 26th, 2016 10:17.

Raspberry Pi NRF24L01 header (incl. 5V to 3V3 voltage regulator and additional SPI header)

https://github.com/HynekBaran/Raspi-NRF24-header.git

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
