Profile for vectorspace
Shared projects
2 Pin Mounting Tab V1.0 2/16/15
by
vectorspace.
2
layer board of
0.52x0.31
inches
(13.23x7.90
mm).
Shared on
April 23rd, 2015 11:54.
Use to mount boards which don’t have mounting holes. Configurable ground pins.
3 Pin Mounting Tab V1.0 2/16/15
by
vectorspace.
2
layer board of
0.52x0.31
inches
(13.23x7.90
mm).
Shared on
April 23rd, 2015 11:54.
Use to mount boards which don’t have mounting holes. Configurable ground pins.
4 Pin Mounting Tab V1.0 2/16/15
by
vectorspace.
2
layer board of
0.52x0.42
inches
(13.23x10.74
mm).
Shared on
April 23rd, 2015 11:53.
Use to mount boards which don’t have mounting holes. Configurable ground pins.

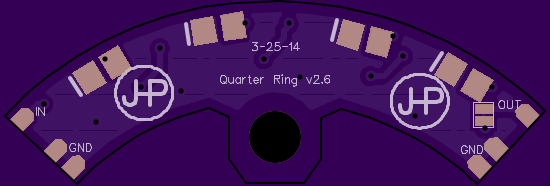

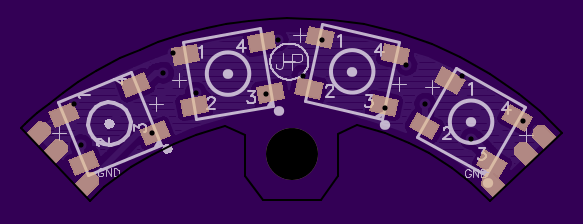

WS2812B Ring Board Section
by
vectorspace.
2
layer board of
1.36x0.46
inches
(34.49x11.76
mm).
Shared on
September 4th, 2014 12:27.
Solder four together to make a ring of twelve WS2812B RGB LEDs. (Tested-Good)
Charlieplex v1.1 (PCB Tested, Verified)
by
vectorspace.
2
layer board of
2.54x0.51
inches
(64.62x12.85
mm).
Shared on
January 7th, 2014 12:20.
20 LEDs on 5 ports 12-11-13
