OSH Park
Profile for wallerron
Shared projects

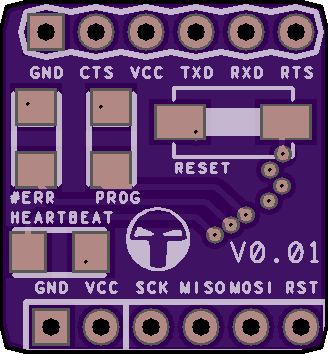

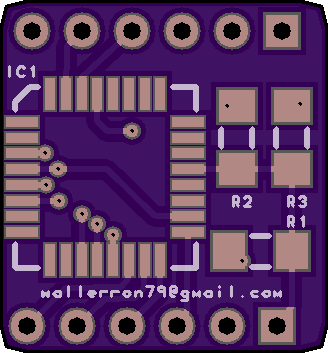

Arduino ISP (FTDI compliant)
by
wallerron.
4
layer board of
0.66x0.71
inches
(16.69x17.98
mm).
Shared on
February 9th, 2016 14:40.
Uno bootloader + Arduino ISP sketch.
BOM :
LED (#ERR): 1206 Red
LED (PROG): 1206 Green
LED (HEARTBEAT): 1206 Blue
ATmega328P-AU: TQFP-32
R1-R3: 100-1000 Ohm (depends on how strong light you want)
1x6 Female pins 0.1"
1x6 Male pins 0.1"
RESET (button): 3x4mm momentary (search on eBay)
Is really versatile used together with the FTDI-condom (not shared yet).
NCP1402 5V BreakOutBoard v001
by
wallerron.
2
layer board of
0.51x0.51
inches
(12.90x12.90
mm).
Shared on
September 14th, 2015 04:02.
BOM TBA!

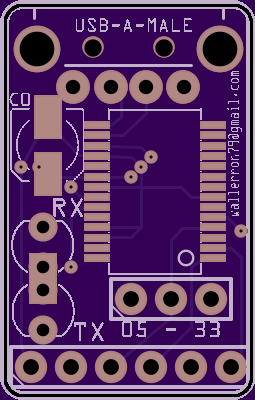

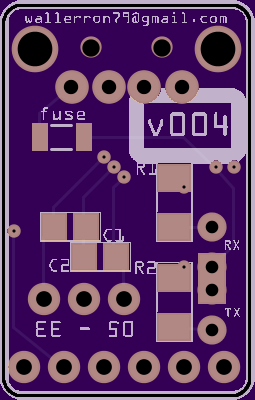

[Tested: OK!] fazFTDI v004
by
wallerron.
2
layer board of
0.63x0.99
inches
(15.88x25.04
mm).
Shared on
January 3rd, 2015 02:18.
Just the last iteration of FTDI-breakout, with USB-A male, 1x6 headers and 3mm LEDs
[Tested: OK!] nRF24L01+ module breadboard friendly
by
wallerron.
2
layer board of
0.77x0.51
inches
(19.51x13.03
mm).
Shared on
December 10th, 2013 01:30.
For quite some time now I wanted a converter board for nRF24L01+ module, to work on a breadboard.
Until now I hadn’t the confidence, but here it is. 6 mil tracings, one 3.3v regulator (SOT-89) and (optional) a pwr LED with resistor.
[Tested: OK!] PLCC6 LED for selection of CA/CC
by
wallerron.
2
layer board of
0.52x0.32
inches
(13.08x8.10
mm).
Shared on
December 7th, 2013 18:20.
1x PLCC-6 5050 RGB LED
3x 100-500R resistors (mounted on anode side)
Intended for a breadboard and thus spans 400mils (reaching both + and - rails)
