OSH Park
Profile for whatnick
Shared projects
ATM90E26 Breakout (New Silk)
by
whatnick.
2
layer board of
1.30x1.07
inches
(33.12x27.08
mm).
Shared on
September 12th, 2016 15:37.

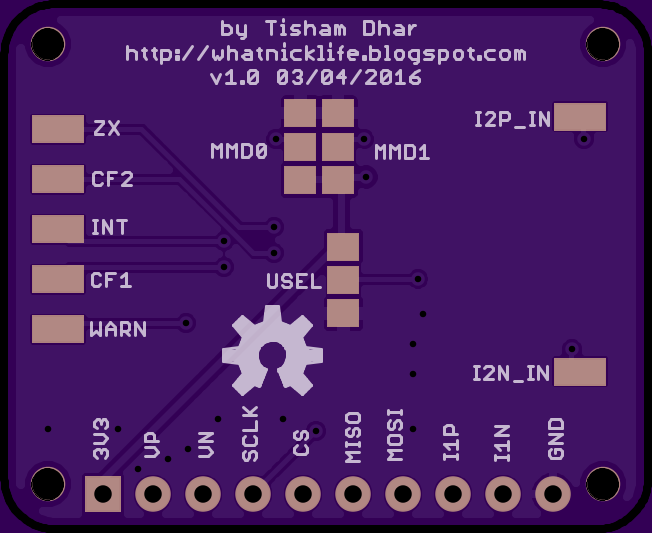

ATM90E26 Breakout with minor silk screen changes. Low voltage sections extracted from reference design. To purchase assembled boards see here - https://www.tindie.com/products/whatnick/atm90e26-breakout/
ATM90E26 Breakout
by
whatnick.
2
layer board of
1.30x1.07
inches
(33.12x27.08
mm).
Shared on
May 18th, 2016 14:21.

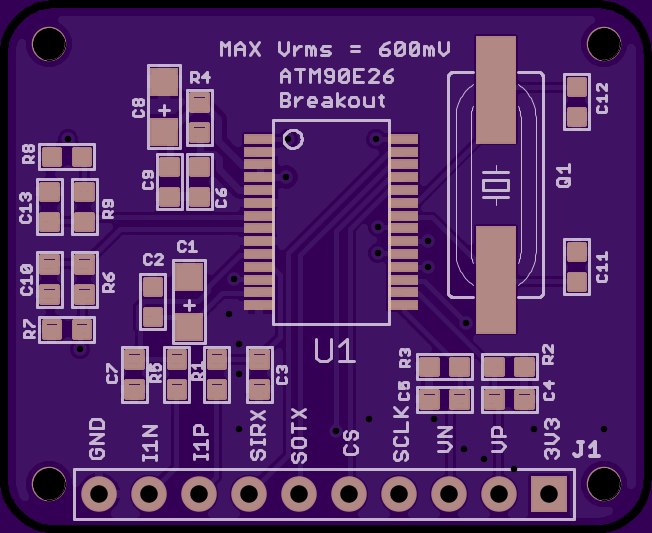

Atmel M90E26 Energy Monitor IC breakout. Low voltage sections extracted from reference design. To purchase assembled boards see here - https://www.tindie.com/products/whatnick/atm90e26-breakout/
ADS1115 Grove Emon v3
by
whatnick.
2
layer board of
1.50x0.81
inches
(38.13x20.52
mm).
Shared on
April 7th, 2016 02:05.

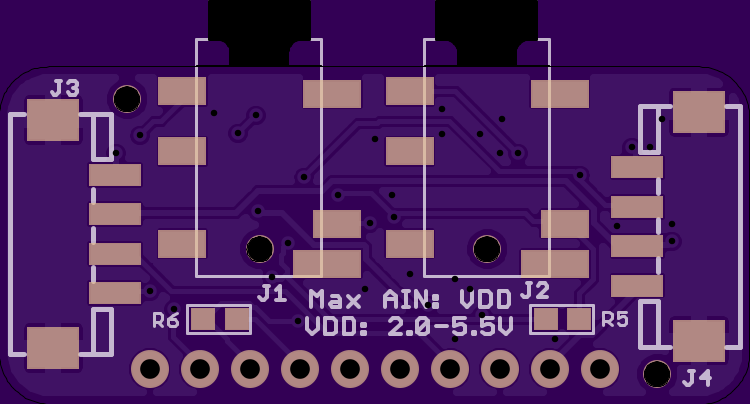

ADS1115 grove breakout with power connections fixed
ADS1115_Featherwing_v4
by
whatnick.
2
layer board of
2.13x0.90
inches
(54.05x22.89
mm).
Shared on
April 5th, 2016 10:19.

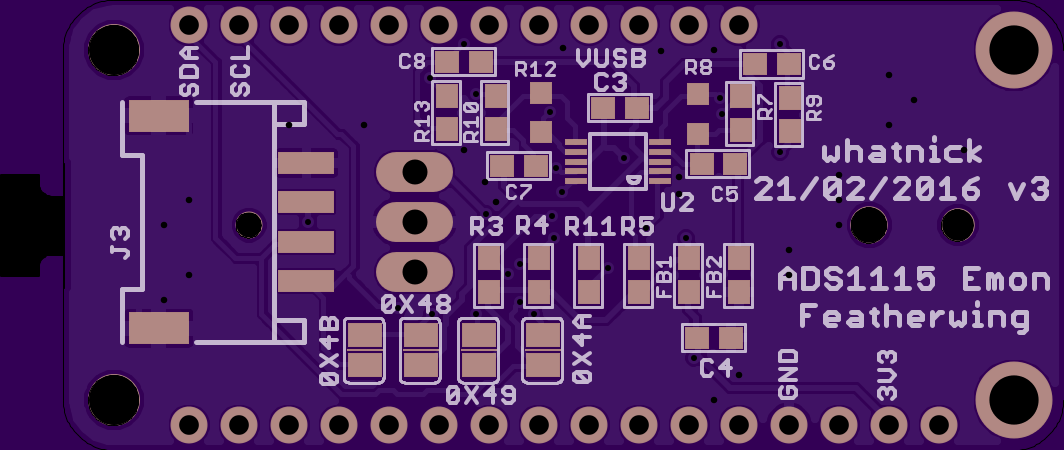

ADS1115 Featherwing with varistor protection on ADC inputs and RC filter for harmonics.
ADS1115_FeatherWing_v3
by
whatnick.
2
layer board of
2.13x0.90
inches
(54.05x22.89
mm).
Shared on
March 21st, 2016 00:02.
ADS1115 breakout for energy monitoring. This version includes a through hole buck converter to save board space and metal-oxide varistors for spike protection. A resistor capacitor network is also included in the ADC inputs for over-voltage protection and harmonics filtering.
