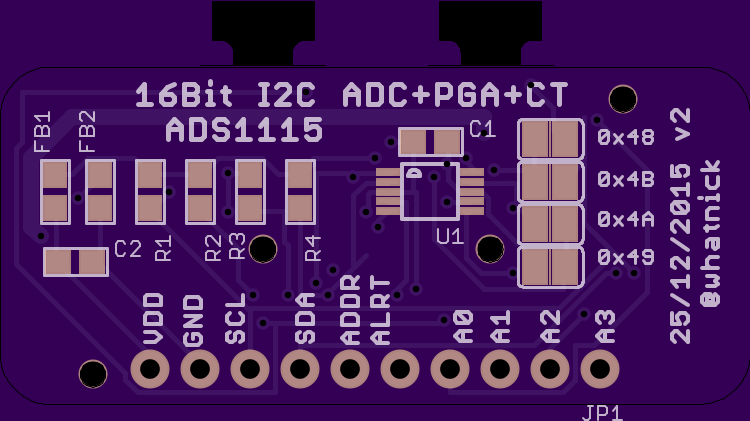

ADS1115 Emon v2

by

2 layer board of 1.50x0.81 inches (38.13x20.52 mm).
Shared on December 26th, 2015 11:42.

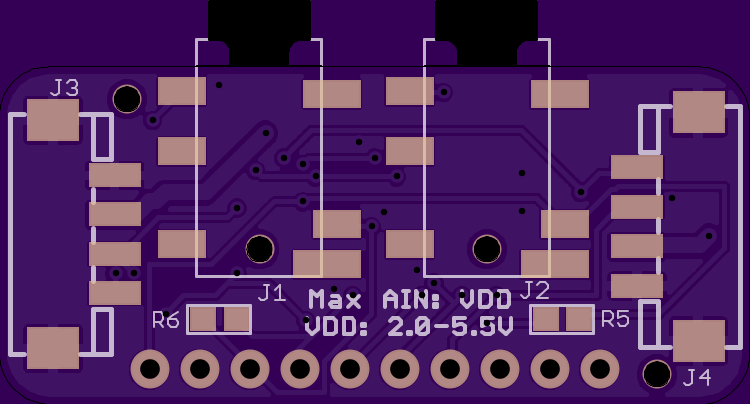

ADS1115 greakout with grove and CT sensor sockets

Copy this HTML into your page to embed a link to order this shared project

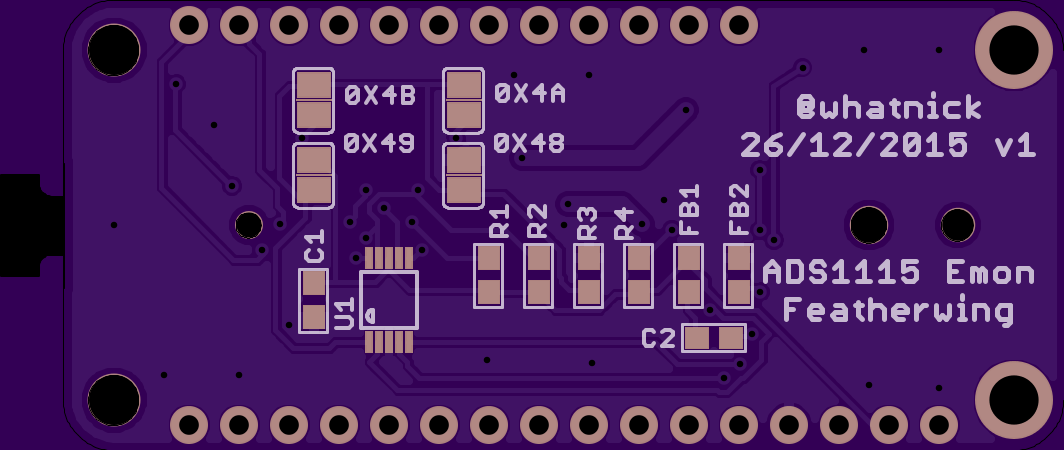

ADS1115 Emon Featherwing v1

by

2 layer board of 2.13x0.90 inches (54.05x22.89 mm).
Shared on December 26th, 2015 11:42.

ADS1115 with full wave rectifier for true power measurements

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.30x1.07 inches (33.12x27.08 mm).
Shared on December 11th, 2015 13:13.

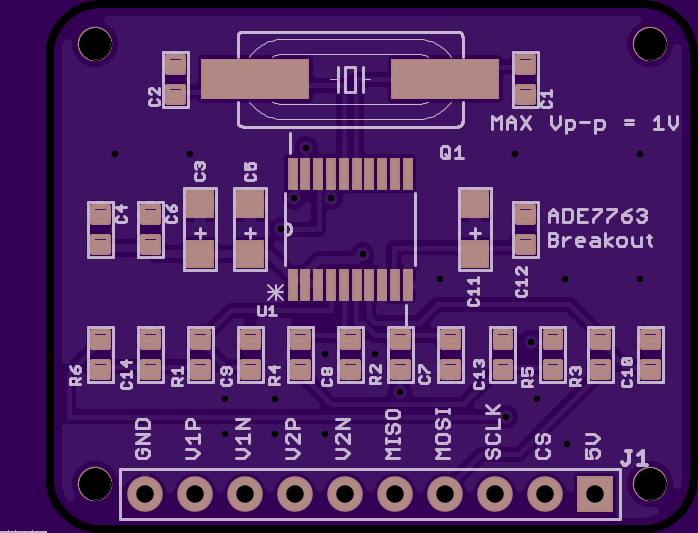

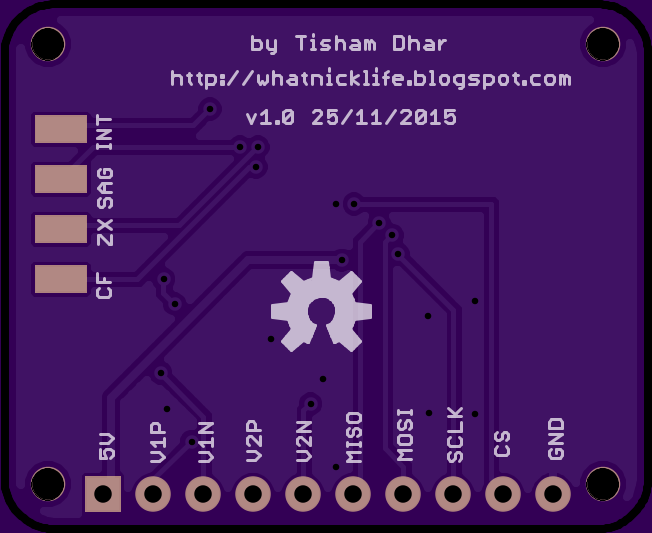

ADE7763 Breakout with all pin exposed

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.30x1.07 inches (33.12x27.08 mm).
Shared on October 27th, 2015 13:25.

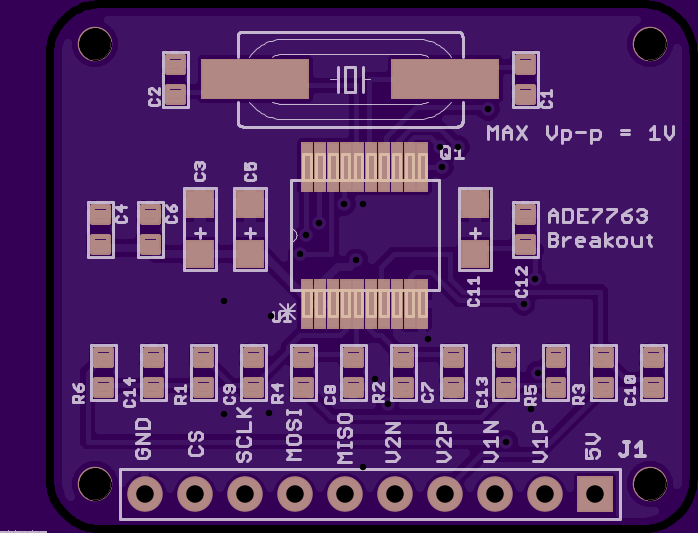

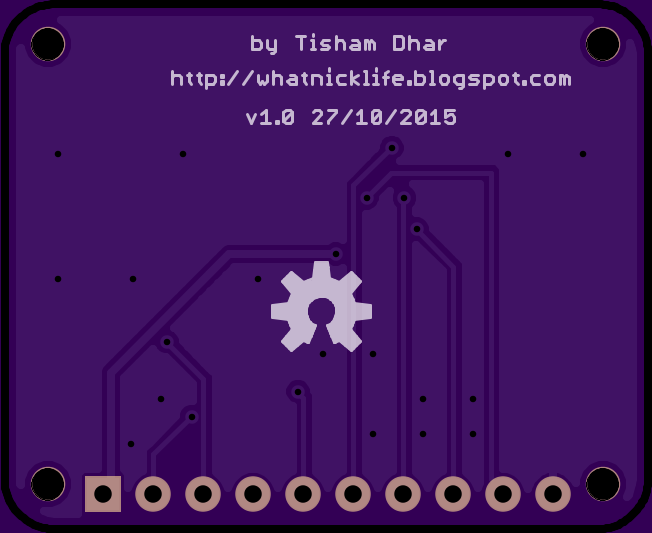

ADE7763 Breakout with SPI. This board has wrong footprint for ADE7763 (TSSOP 20 instead of SSOP 20) as well as mislabeled headers.

Copy this HTML into your page to embed a link to order this shared project

by

2 layer board of 1.11x0.80 inches (28.09x20.35 mm).
Shared on October 27th, 2015 01:59.

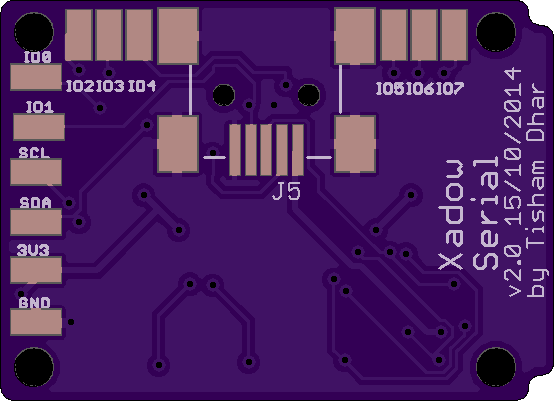

Xadow Serial with better crystal location
