Shared projects

Patriot Companion

by zakqwy.
Top
Bottom

2 layer board of 2.76x1.19 inches (70.15x30.18 mm).
Shared on May 17th, 2017 16:23.

Board designed by the Patrick Henry High School Spring 2017 Digital Electronics class with a bit of help from Dylan Miracle (teacher) and Zach Fredin (volunteer). Thanks to OSHpark for your generous sponsorship of the project. We will update this description when the boards are assembled and tested!

More info: https://hackaday.io/project/20103-patriot-companion

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

blinktronicator

by zakqwy.

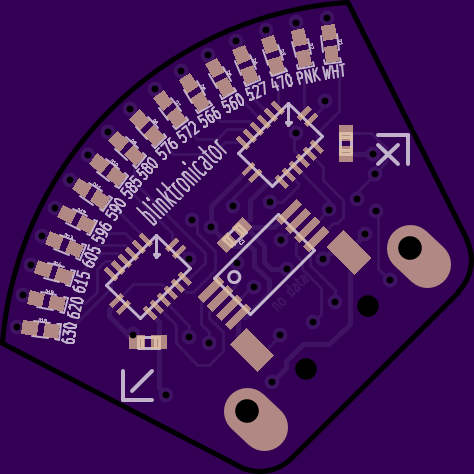

Top

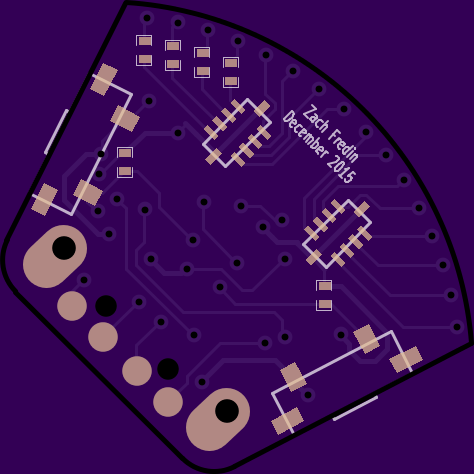

Bottom

2 layer board of 0.95x0.95 inches (24.08x24.10 mm).
Shared on December 31st, 2015 13:45.

Sixteen teeny LEDs, USB power. No data.

More info: https://hackaday.io/project/8331-blinktronicator
