"ZIFFY" AVR ISP Shield 5.0

by schizobovine.
Top
Bottom

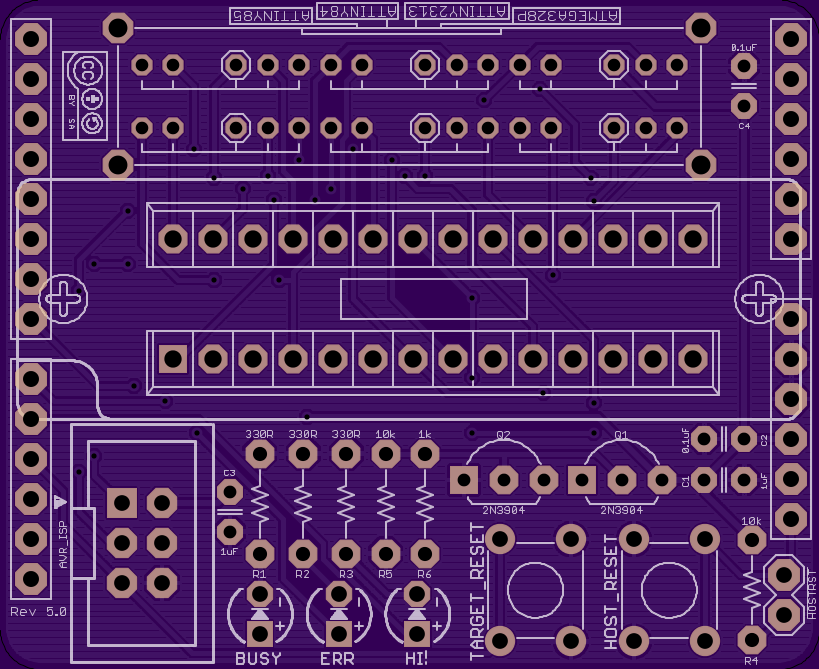

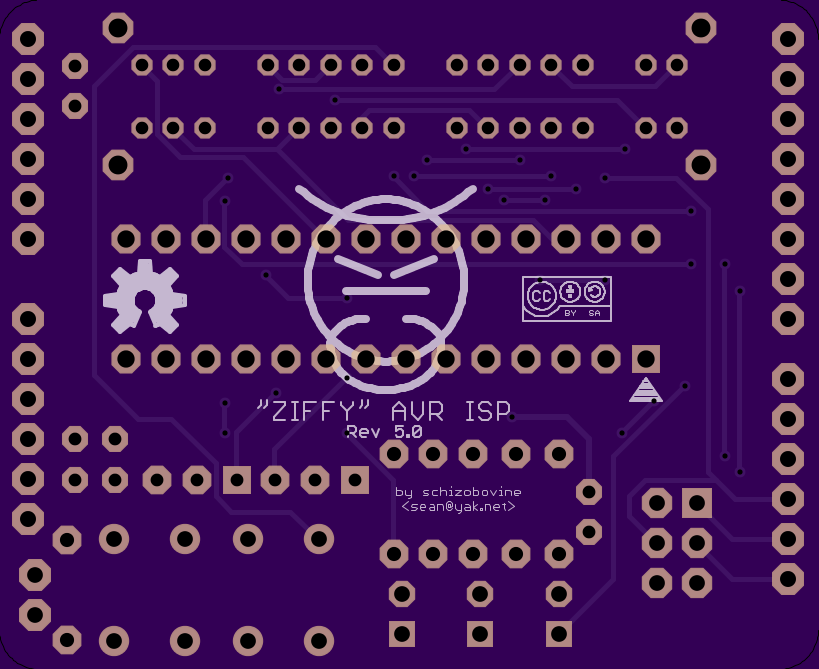

2 layer board of 2.05x1.67 inches (52.02x42.52 mm).
Shared on January 12th, 2015 17:58.

Revison 5.0 - Instead of using separate ZIF sockets, use a ridiculous 6P4T mechanical switch to select which lines go to which pins. Supports programming any AVR via the ISP connector, and the following via the onboard ZIF socket:

  • ATTiny 25/45/85
  • ATTiny 24/44/84
  • ATTiny 2313/4313
  • ATMega 328P

https://github.com/schizobovine/avr_ziffy
