1U_Mini_BusBoardv01.brd

by morc.

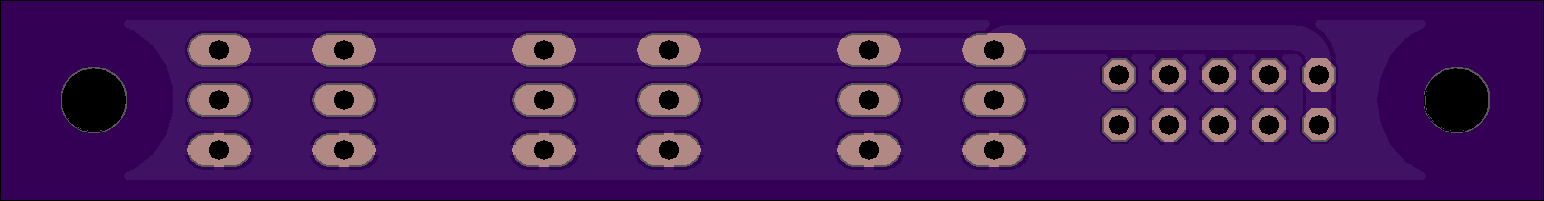

2 layer board of 3.09x0.40 inches (78.44x10.16 mm).
Shared on November 26th, 2016 16:21.

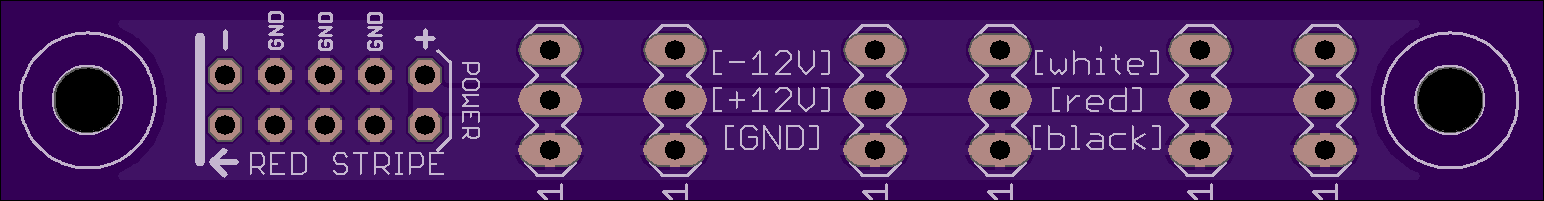

A small busboard to power 1U eurorack tiles (Futaba connectors, black: Gnd; red: +12V, white: -12V). The board is powered via a doepfer-style 10 pin header.
