rj11 jst xh

by trimarco232.
Top
Bottom

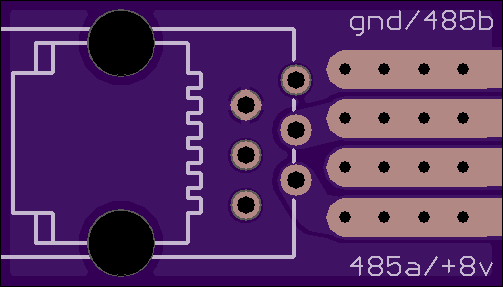

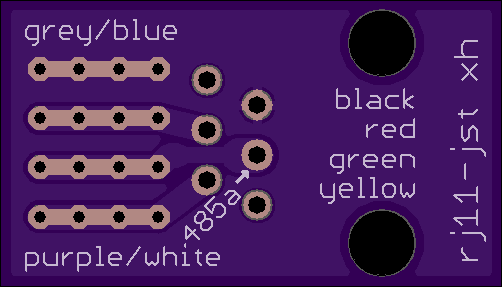

2 layer board of 1.00x0.57 inches (25.50x14.50 mm).
Shared on November 23rd, 2016 19:18.

connects a rj11 6p4c socket to a 4 wire jst xh female header. The pins of the jst header are not through hole, but they must be soldered flat on the board : so the flat ribbon cable on the rj11 side and the wires on the jst side are lined up
