ESP8266 HVAC Thermostat

by CuriousTech.
Top

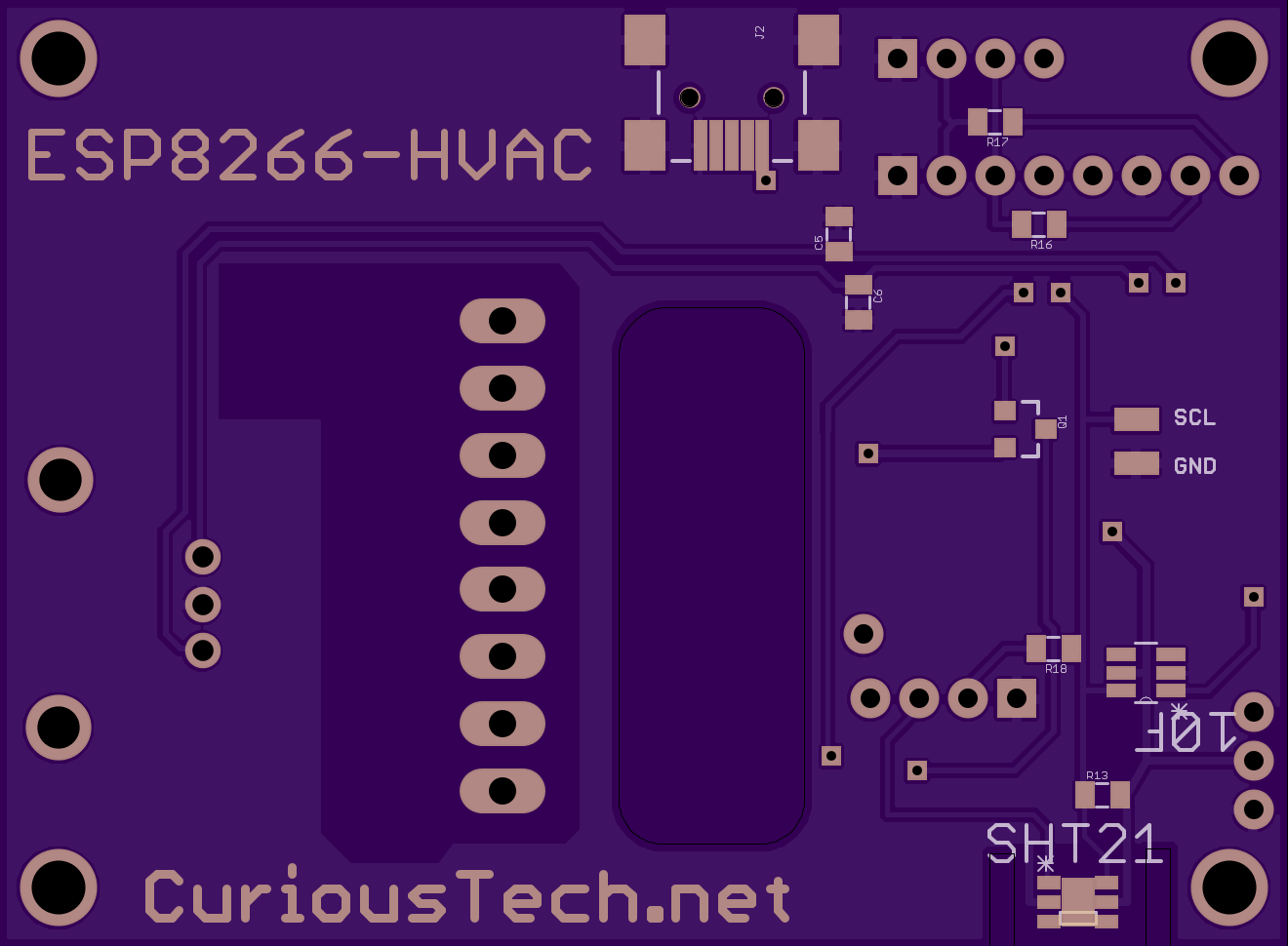

Bottom

2 layer board of 2.64x1.94 inches (67.08x49.28 mm).
Shared on May 2nd, 2016 01:28.

Full feature WiFi thermostat using ESP-07, with 24VAC supply, 5 outputs, SHT21 or DHT22, and Nextion HMI touchscreen. Main and remote in one design.
Project on Github
