Reflow PID Controller V. 1.0

by ivarho.

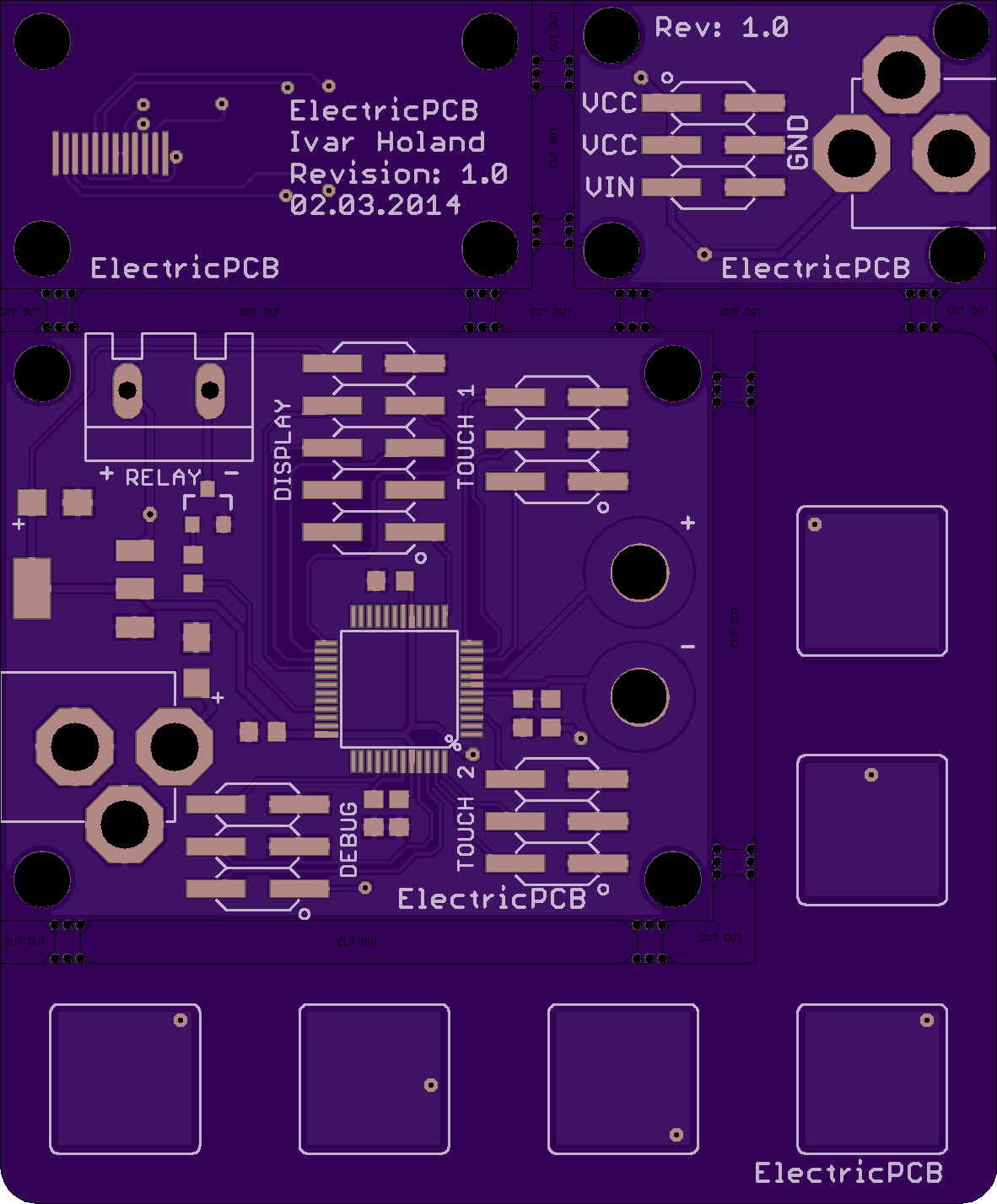

Top

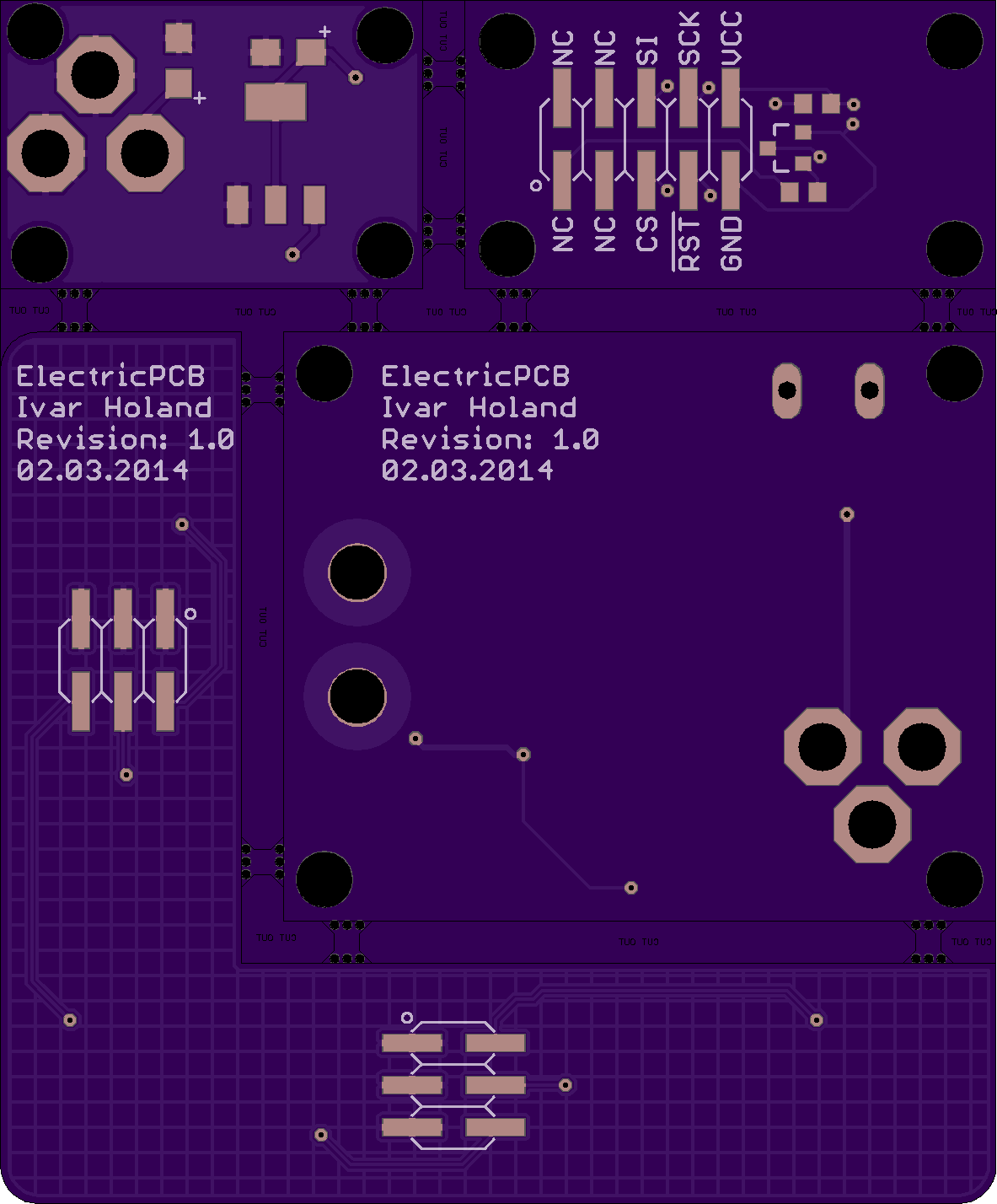

Bottom

2 layer board of 2.36x2.86 inches (60.05x72.52 mm).
Shared on March 2nd, 2014 21:00.

User interface and controller board for reflow oven. Including touch pads, Nokia 1202 LCD breakout board and main board.
