Danger! Danger! PSU Rev 5.0

by schizobovine.

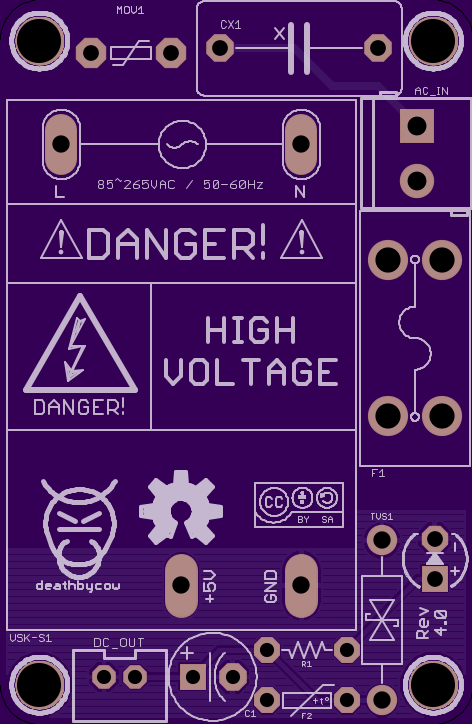

Top

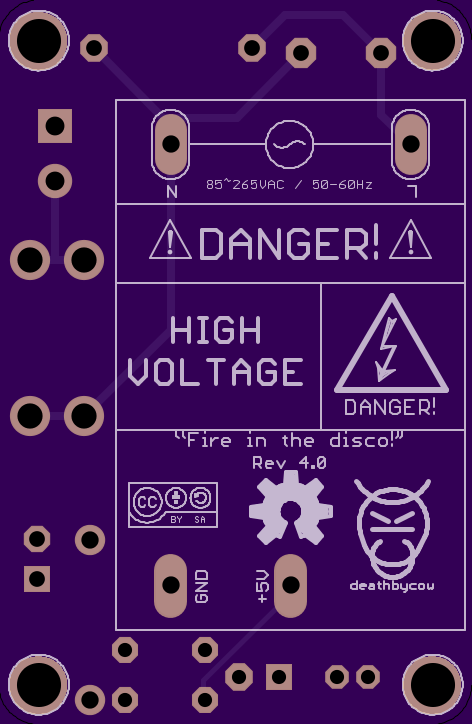

Bottom

2 layer board of 1.18x1.81 inches (30.02x46.02 mm).
Shared on January 29th, 2015 20:08.

Breakout board for CUI’s VSK line of PCB-mount AC/DC converters. Includes fuse, MOV, X-rated cap, and DC side protection elements (PTC, TVS). Totally not an Electric Six reference.
