FRC PWM/Spike Tester

by adnewhouse.

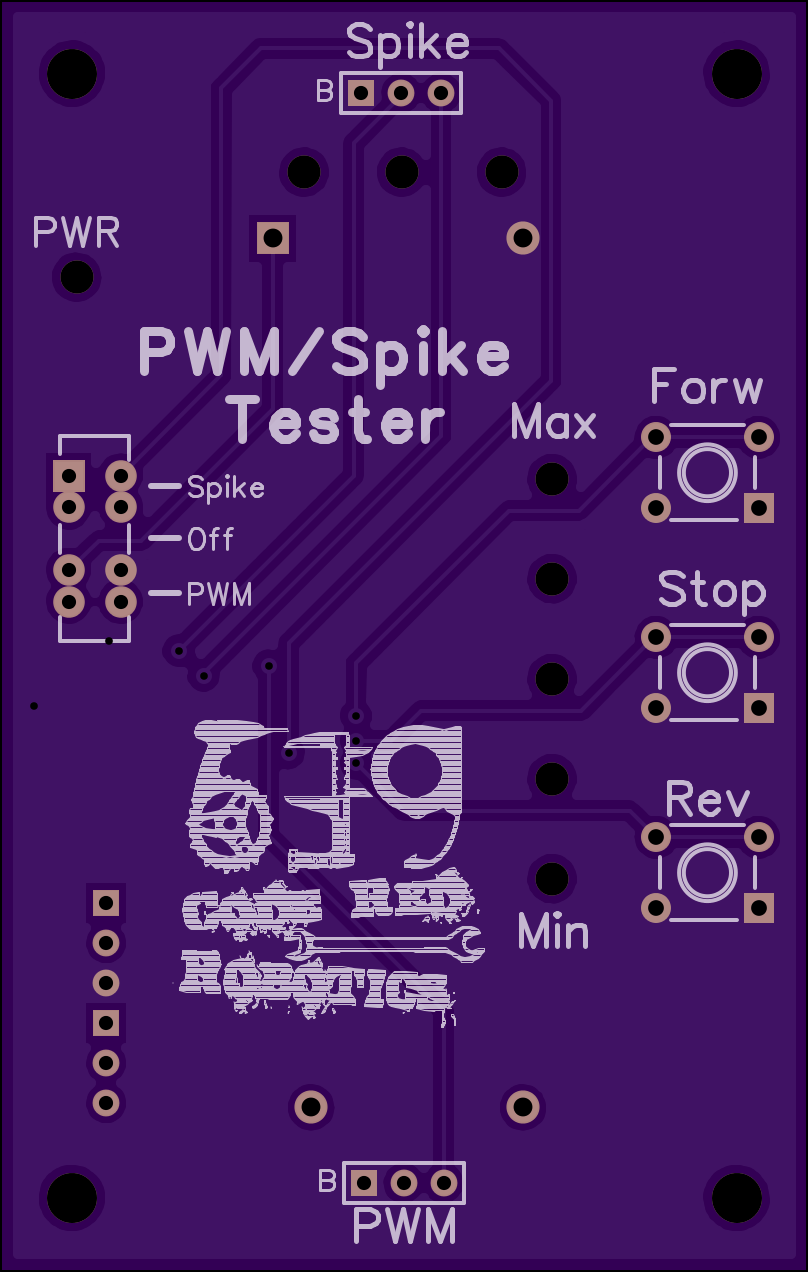

Top

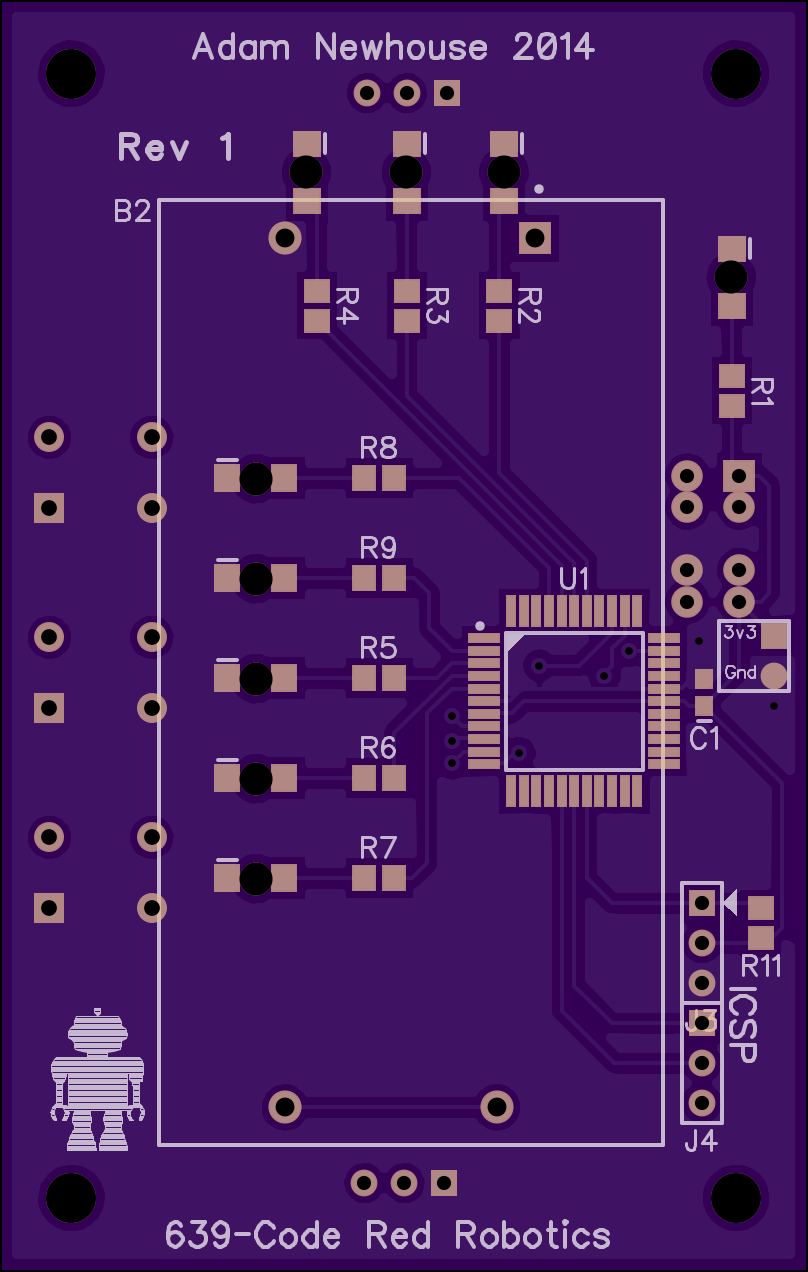

Bottom

2 layer board of 2.02x3.18 inches (51.36x80.82 mm).
Shared on July 28th, 2014 03:01.

A small test device for FRC control systems capable of controlling talons, victors and pwm jaguars. It can also fire spikes in forward or reverse. The main uC is a Pic18f45k20. Alt text
