LTC2309 8 channel 12bit ADC to I2C TSSOP-20

by donatas.
Top
Bottom

2 layer board of 1.64x0.88 inches (41.76x22.45 mm).
Shared on March 8th, 2017 20:31.

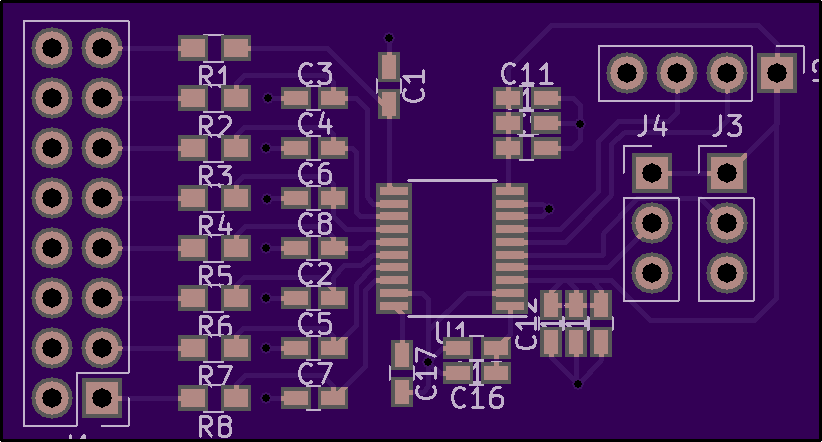

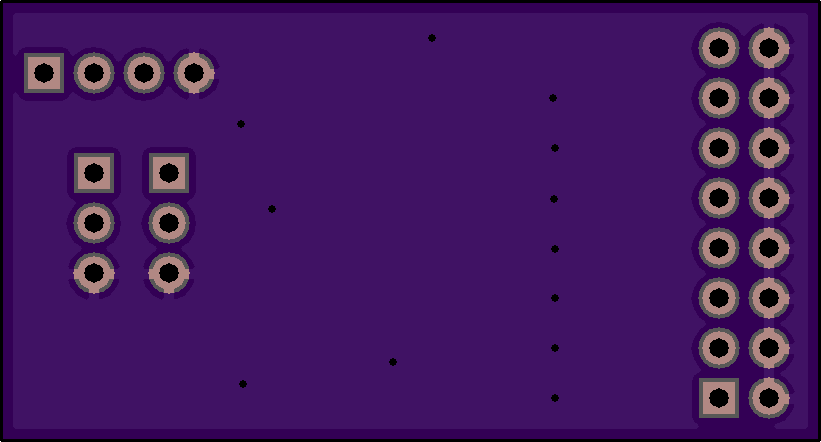

LTC2309 PCB from datasheet. Use values referenced in datasheet. Uses 0603 parts.
