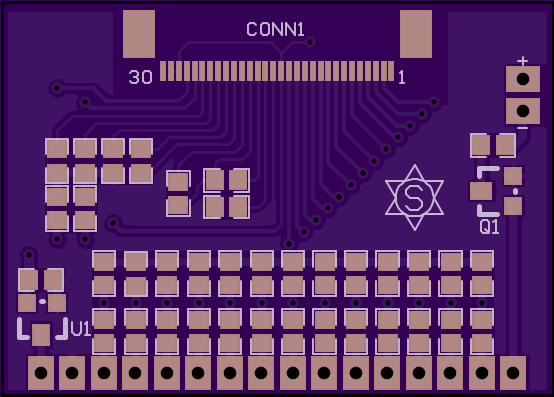

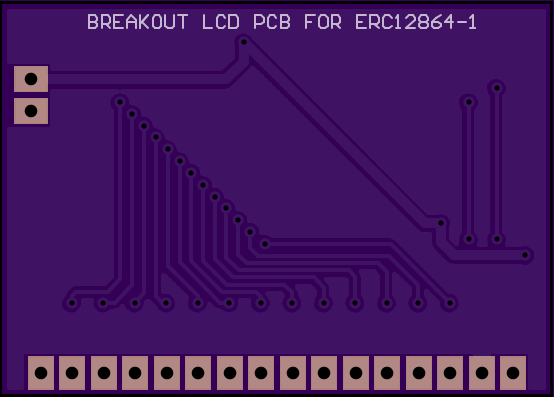

lcd breakout pcb

by plane_spotter.

2 layer board of 1.39x0.99 inches (35.23x25.22 mm).
Shared on July 4th, 2014 08:17.

breakout pcb for core9x erc12864-1

http://www.rcgroups.com/forums/showthread.php?t=1631369&page=73#post27753005
