RJ45 LED Breakout v1.0

by nslogan.

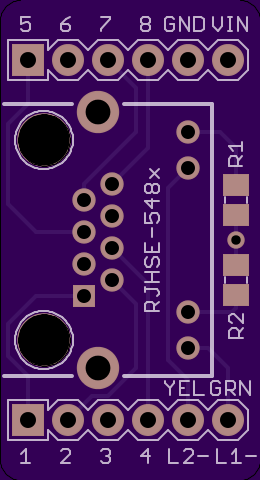

Top

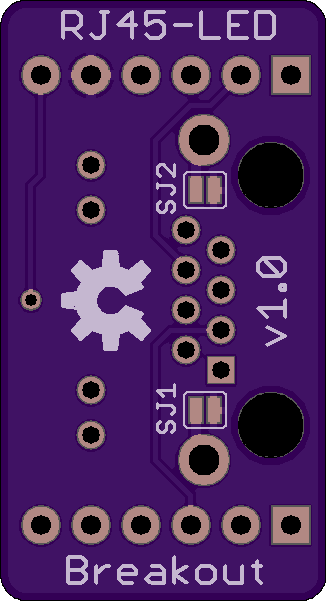

Bottom

2 layer board of 0.65x1.20 inches (16.54x30.48 mm).
Shared on August 8th, 2014 01:45.

Simple breakout board for an RJ45 with LEDs. Has two 0805 resistor pads tied to Vin with pins for LED1/2-. Has solder pads for both shield legs to optionally tie to ground. Intended for use with Amphenol RJHSE-548x series. You can find this project on GitHub. Fits breadboard well with headers 0.9" apart.
