Teensy Testing Stick

by ScrobbyRobotics.

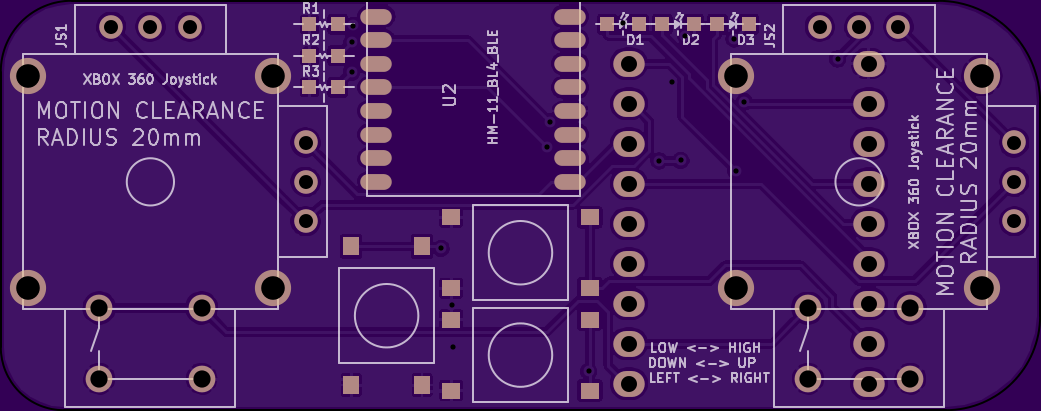

Top

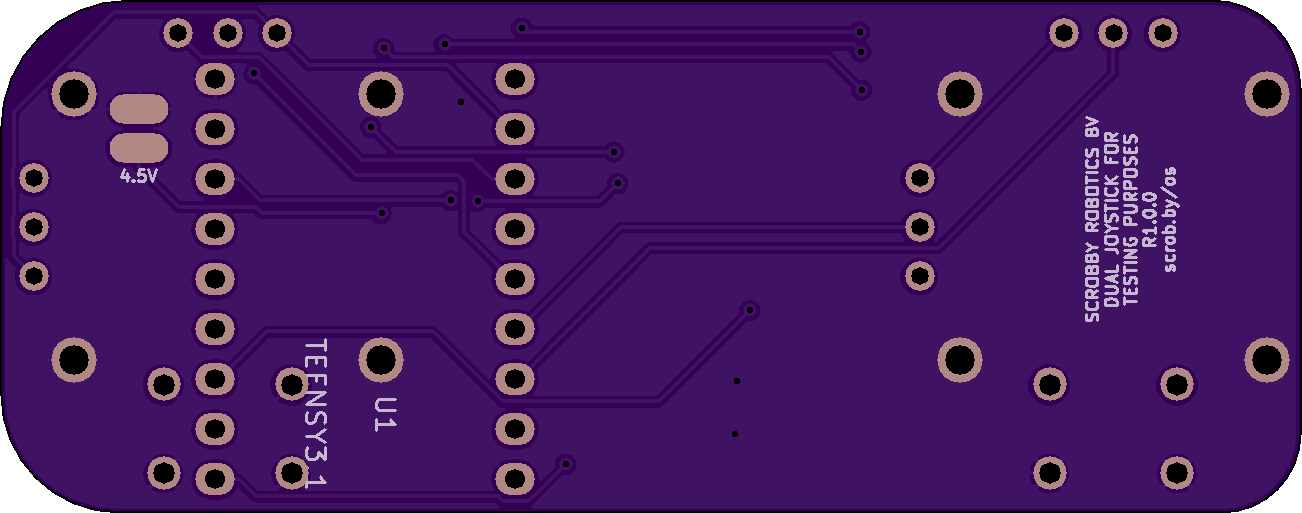

Bottom

2 layer board of 2.60x1.03 inches (66.12x26.11 mm).
Shared on August 9th, 2014 19:53.

Quick and dirty dual XBOX 360 joystick. You can add up to 3 LEDs, 3 6x6mm SMD buttons and one HM-11 Bluetooth 4.0 LE module. Be sure to trim the pins of the Teensy connector under JS2.
