Li-ion Charger revision v1.0

by NickLeijenhorst.
Top
Bottom

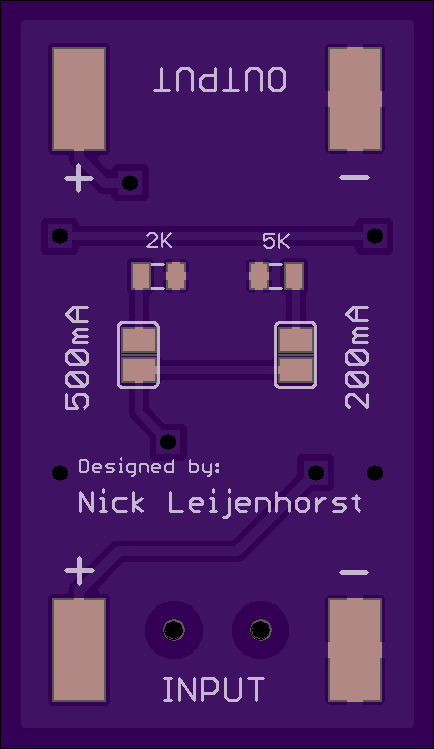

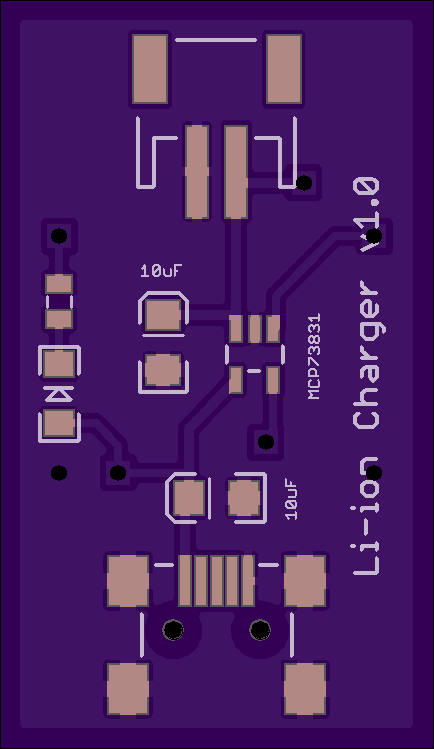

2 layer board of 0.87x1.50 inches (22.02x38.02 mm).
Shared on February 14th, 2014 23:21.

  • Charges a 1-cell Li-ion battery through mini-USB or another input (3.75v - 6v)

  • Charging current selectable through a solder jumper

  • Big solder pads for input and output

  • Status led to indicate charging (5 mA)
