XBee Sensor Node V1.2

by FamousJameous.

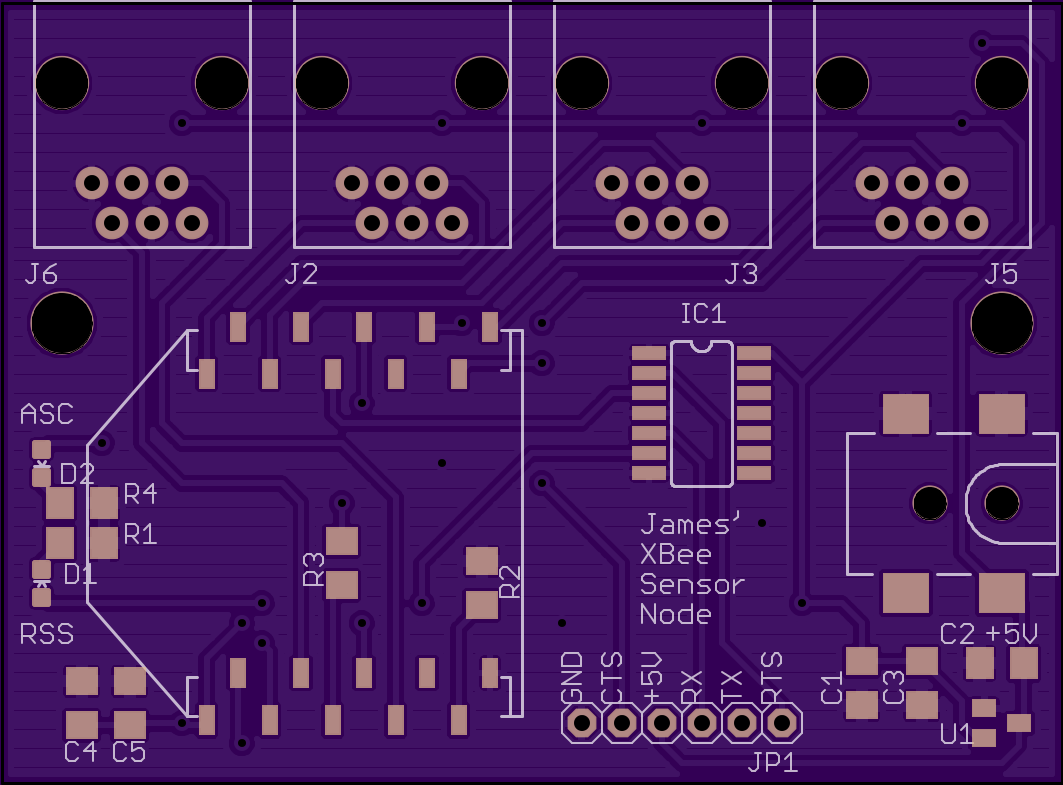

Top

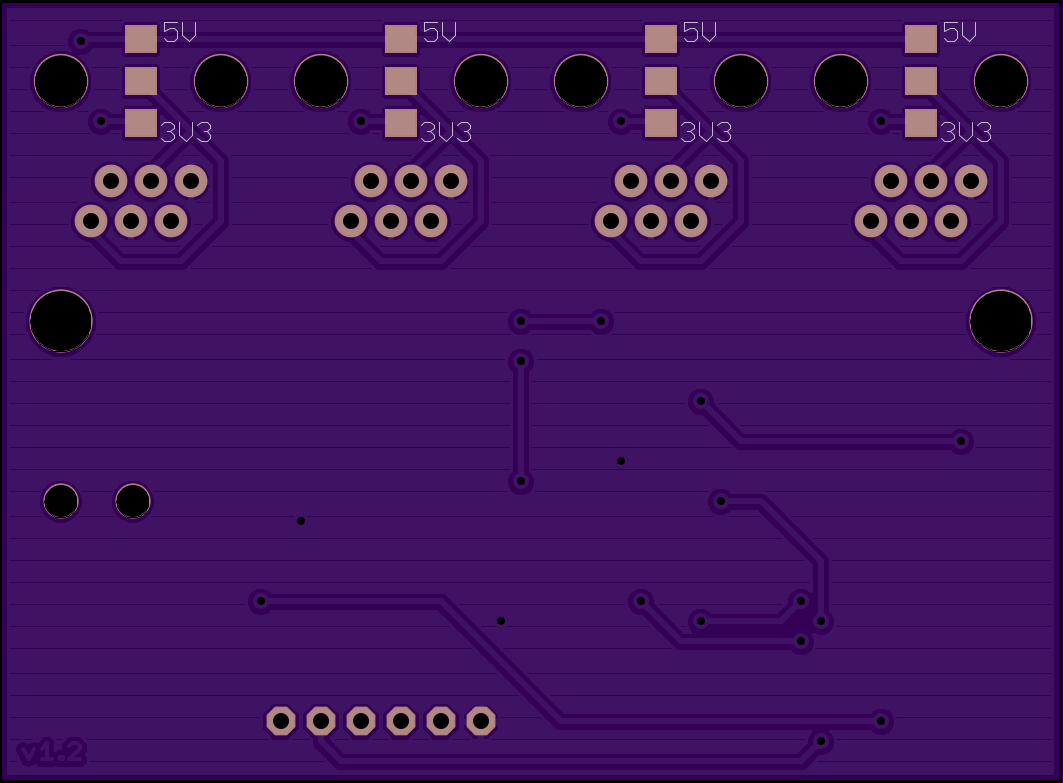

Bottom

2 layer board of 2.66x1.96 inches (67.51x49.73 mm).
Shared on September 6th, 2014 22:45.

An XBee connected to several RJ11 jacks for connecting sensors. Voltage to the RJ11s is selectable.
