ULN2803_Breakout

by

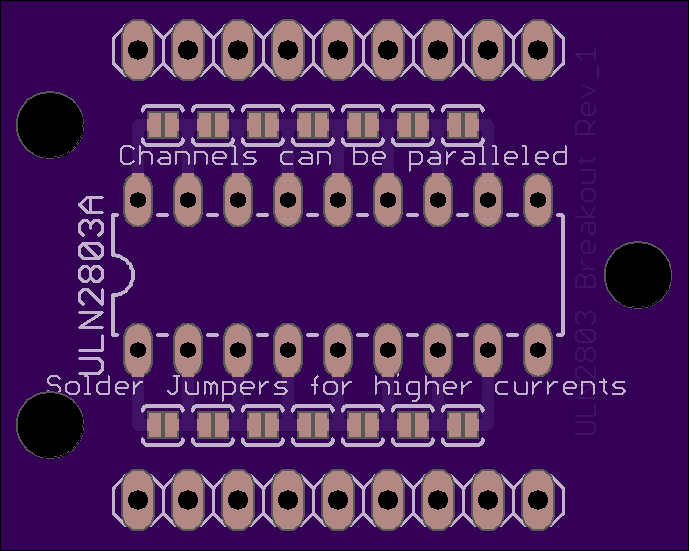

Top

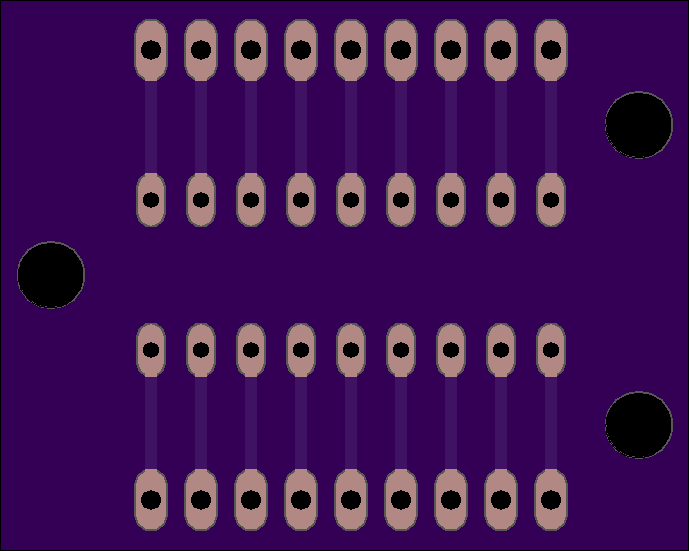

Bottom

2 layer board of 1.38x1.10 inches (34.92x27.94 mm).
Shared on February 1st, 2014 00:54.

DIP-18 Breakout for ULN2803 Darlington Array. I have included solder jumpers to stack up each channel to increase sourcing capability. These work great as a general purpose driver for LED’s, Motors, and heaters.
