ISP_JTAG.brd

by physnoct.

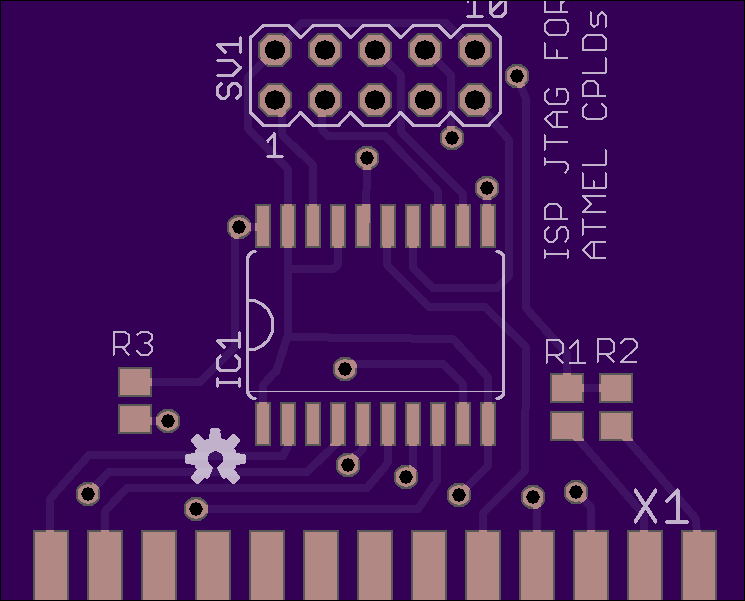

Top

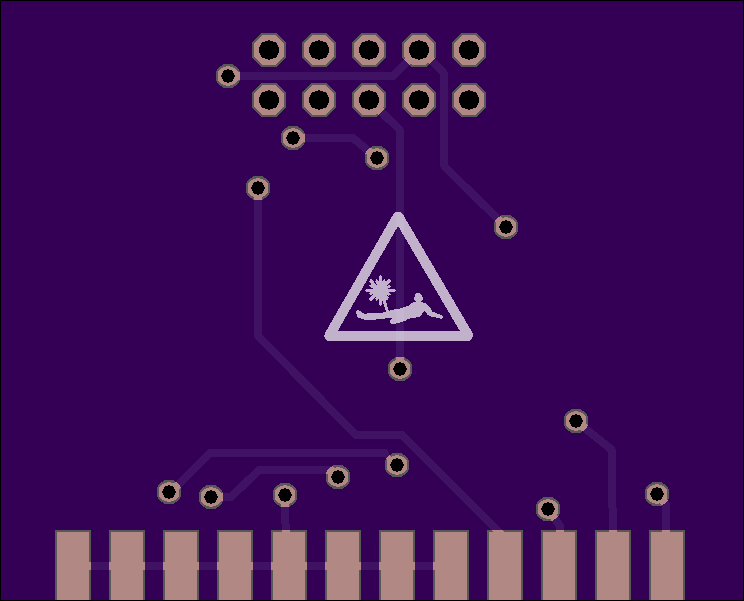

Bottom

2 layer board of 1.49x1.20 inches (37.80x30.48 mm).
Shared on November 27th, 2016 00:40.

Parallel port ISP JTAG programmer for Atmel CPLDs

Can be used with the Atmel ISP software. Compatible with PCI / PCIe / PCMCIA parallel port adapters (USB adapters won’t work). Use a 5V or 3.3V buffer (same footprint as 74LS244). R1,R2: 4.7k 0805, R3: 10k

SV1 Connector pinout

1 TCK 2 GND 3 TDO 4 VCC 5 TMS 6 No connect 7 No connect 8 No connect 9 TDI 10 GND

DB25

Male DB25 with solder cups
