GMaple-mini

by gruvin.

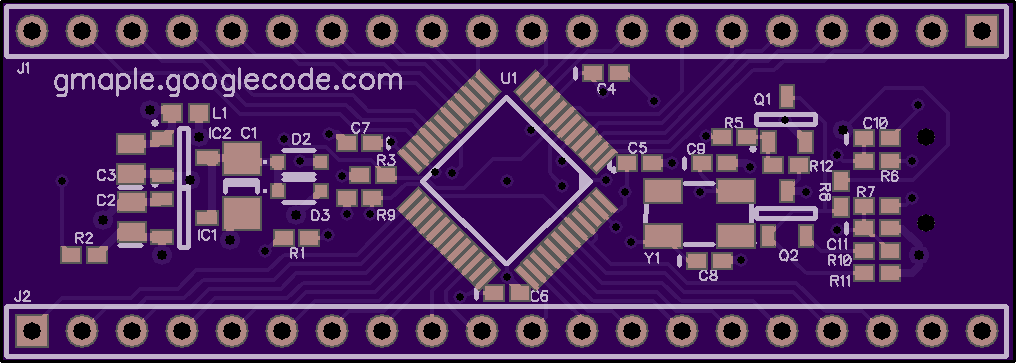

Top

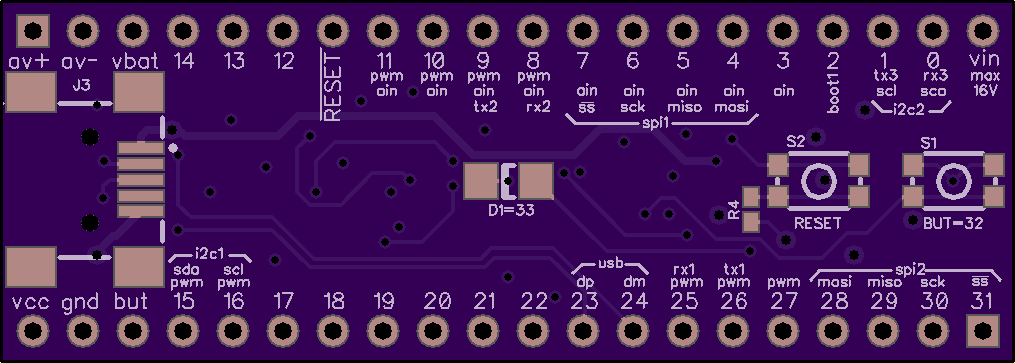

Bottom

4 layer board of 2.03x0.73 inches (51.59x18.44 mm).
Shared on November 24th, 2016 07:32.

Clone of Maple-mini from LeafLabs

This houses the STM32F103CBT6 (128K / 20K / ARM 72MHz / 48 pin) MCU from ST.com.

Heavily based on the original design. Built (x2) and fully tested. See my open hardware files at GitHub.

The board contains 4-layers (two signal + two power plane) and was designed using the free version of Diptrace.

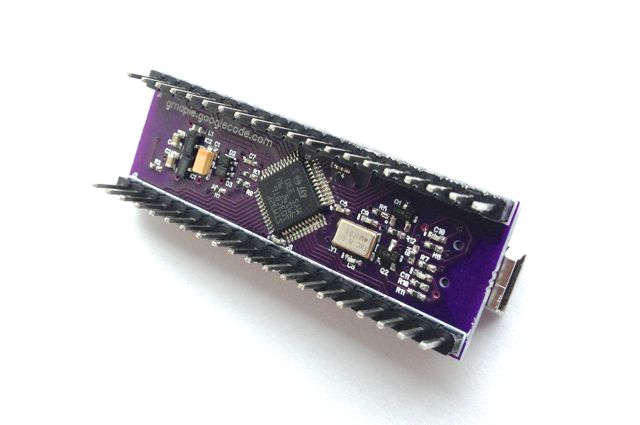

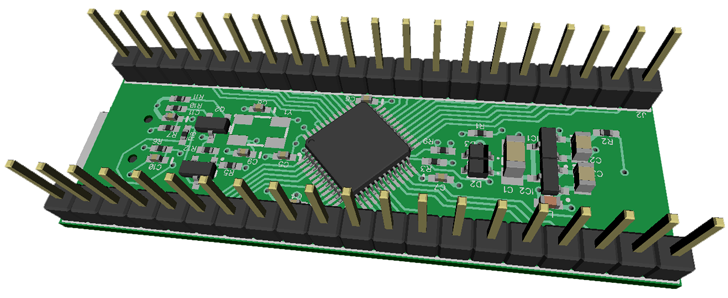

First Build Photo 1 of 2 PCB Rendering
