Attinier84 Motherboard Mk 3.2

by schizobovine.

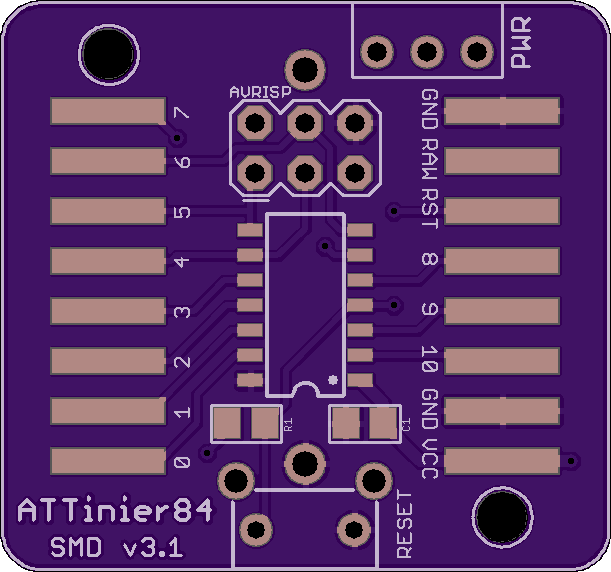

Top

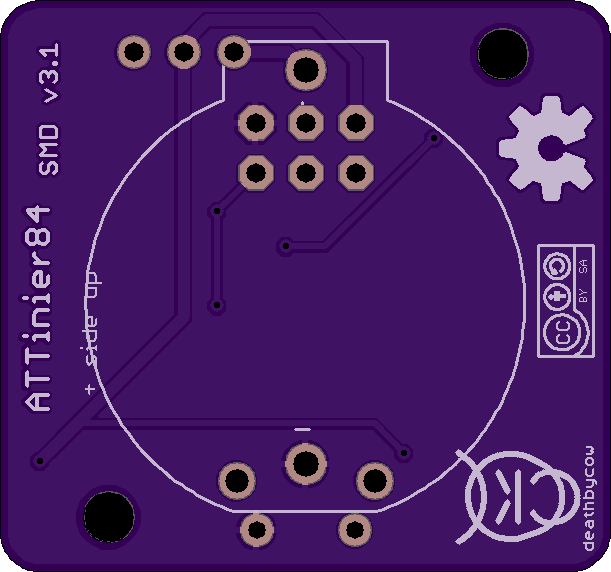

Bottom

2 layer board of 1.22x1.14 inches (31.01x29.01 mm).
Shared on March 2nd, 2016 08:49.

Smallish form factor ATTiny84 platform that doesn’t bother with USB. This is the microcontroller motherboard with a CR2032 holder on the back. Fits Hammond enclosure 1551G. Combination SMD/PTH version to try to fit everything onboard with ISP.

https://github.com/schizobovine/ATTinier84
