prominitest.brd

by theguaz.

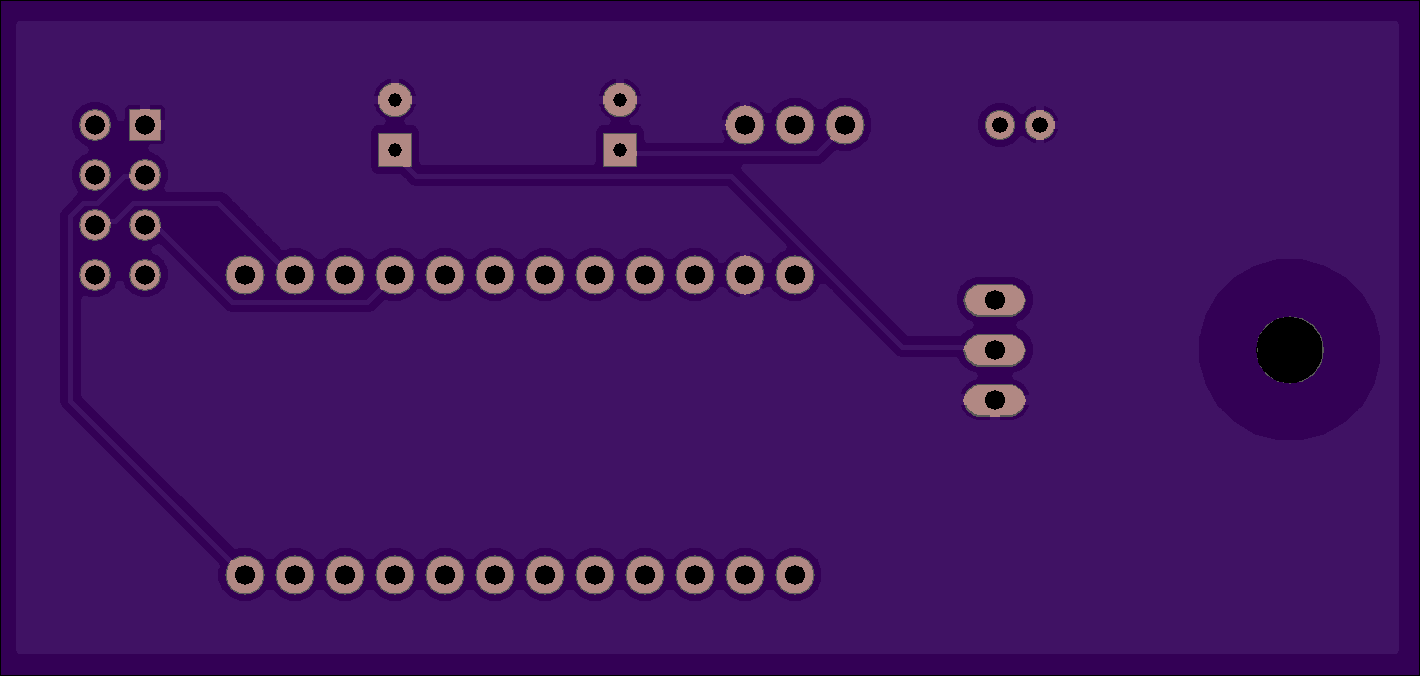

2 layer board of 2.84x1.35 inches (72.09x34.29 mm).
Shared on January 11th, 2017 10:10.

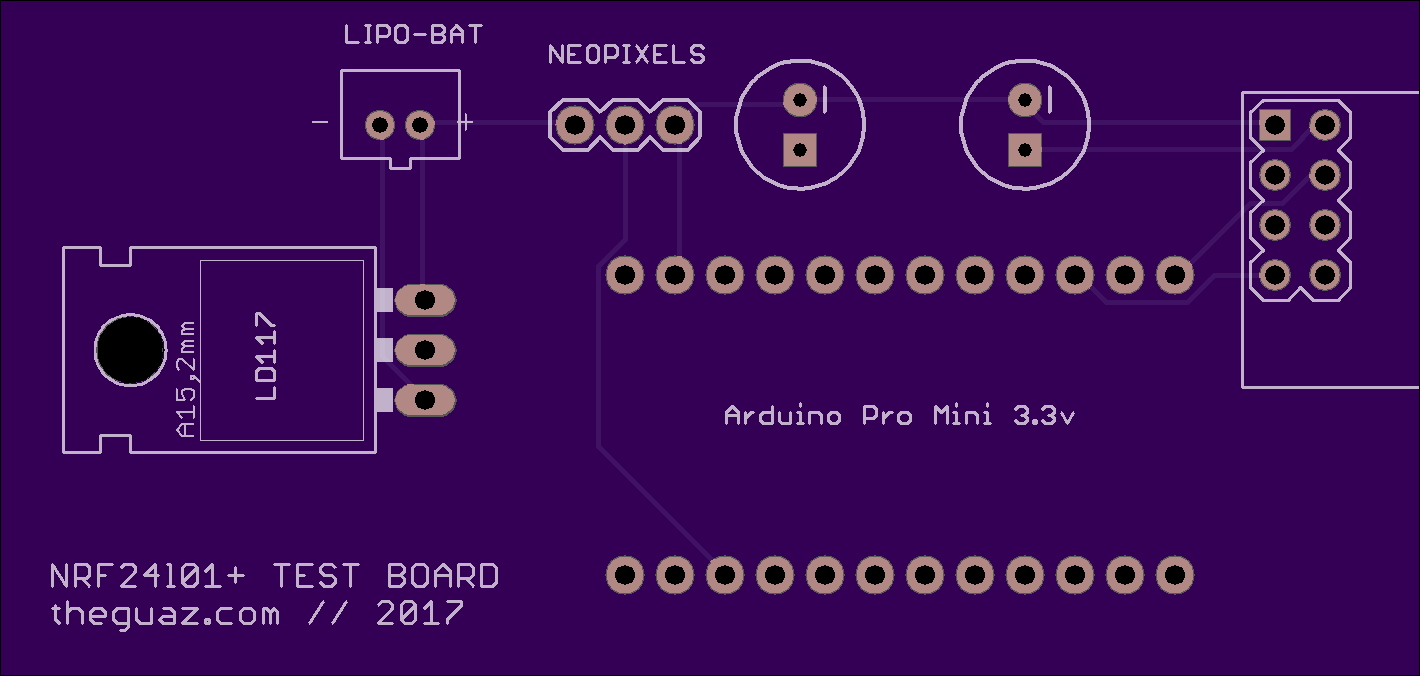

A small PCB board to test communication between NRF24 breakout systems, the PCB was thinked based on: - a Arduino pro-mini 3.3v - NRF24L01 breakout - WS2801 leds - 3.7v lypo battery - LD117XXX regulator

https://github.com/akupila/NRF24 was used as comunication library.
