MDB_PotBoard 0.0.0

by RabidElephant.

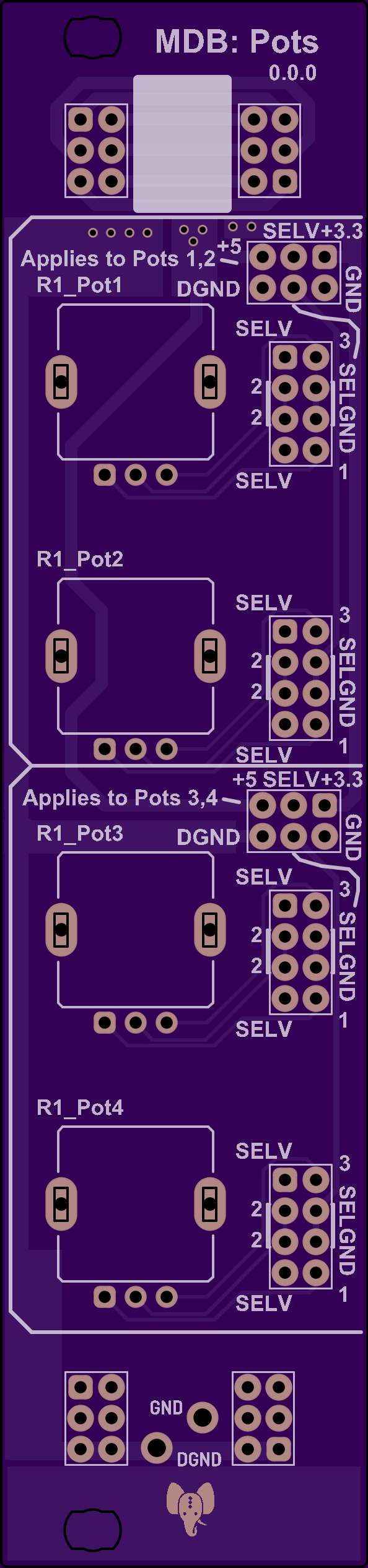

Top

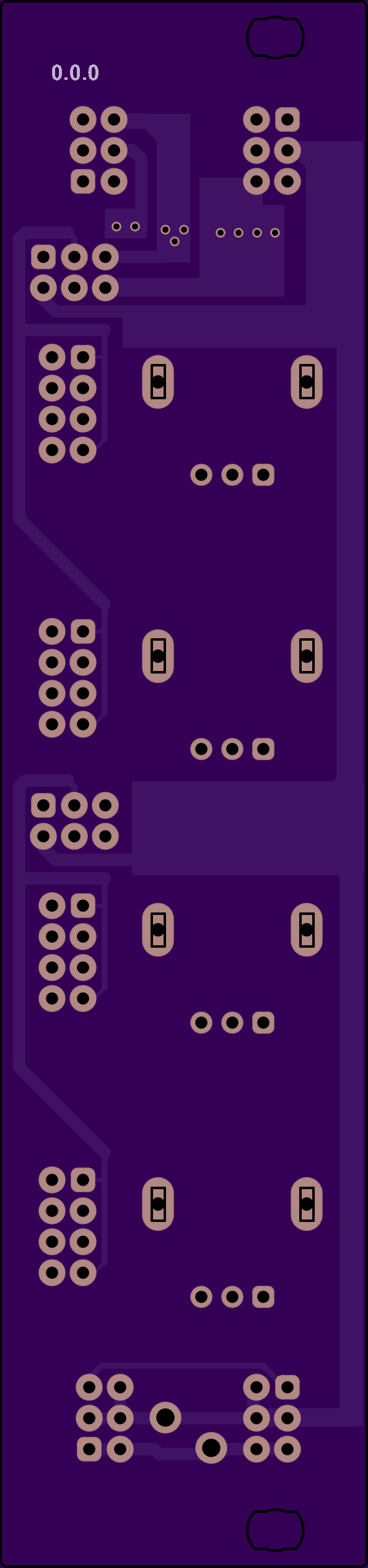

Bottom

2 layer board of 1.19x5.07 inches (30.20x128.70 mm).
Shared on January 19th, 2016 17:28.

This is part of our “Modular Dev Board” for the Eurorack format. We use these internally for rapidly prototyping/testing modules before committing to final prototype modules.

This module uses BI P260T potentiometers. Some other vertical mount pots may work but have not been tested. Pins are 2.54mm pitch.
