AD8253 Programmable Gain Instrumentation Amplifier Breakout

by siahman.

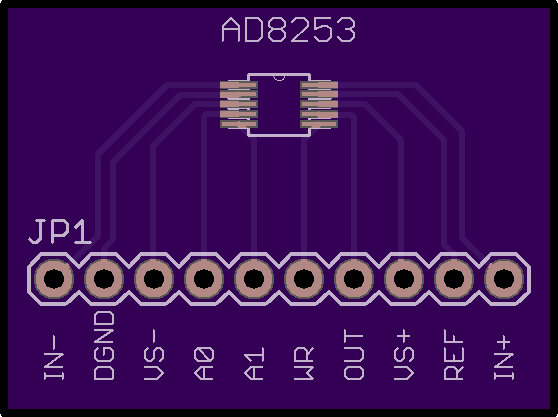

Top

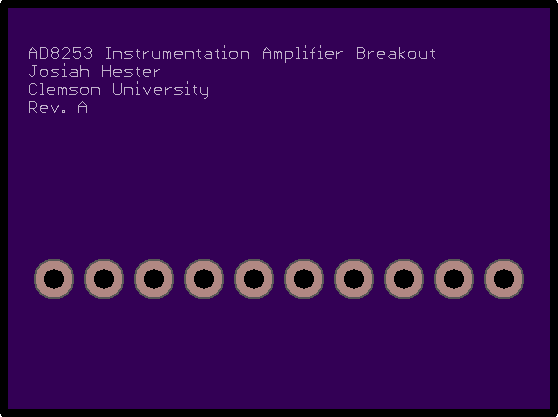

Bottom

2 layer board of 1.12x0.83 inches (28.35x21.16 mm).
Shared on March 12th, 2014 02:08.

Breaks out the 10 pin AD8253ARMZ-R7. A low noise, programmable op-amp.
