Motor Controller

by DarrenP.

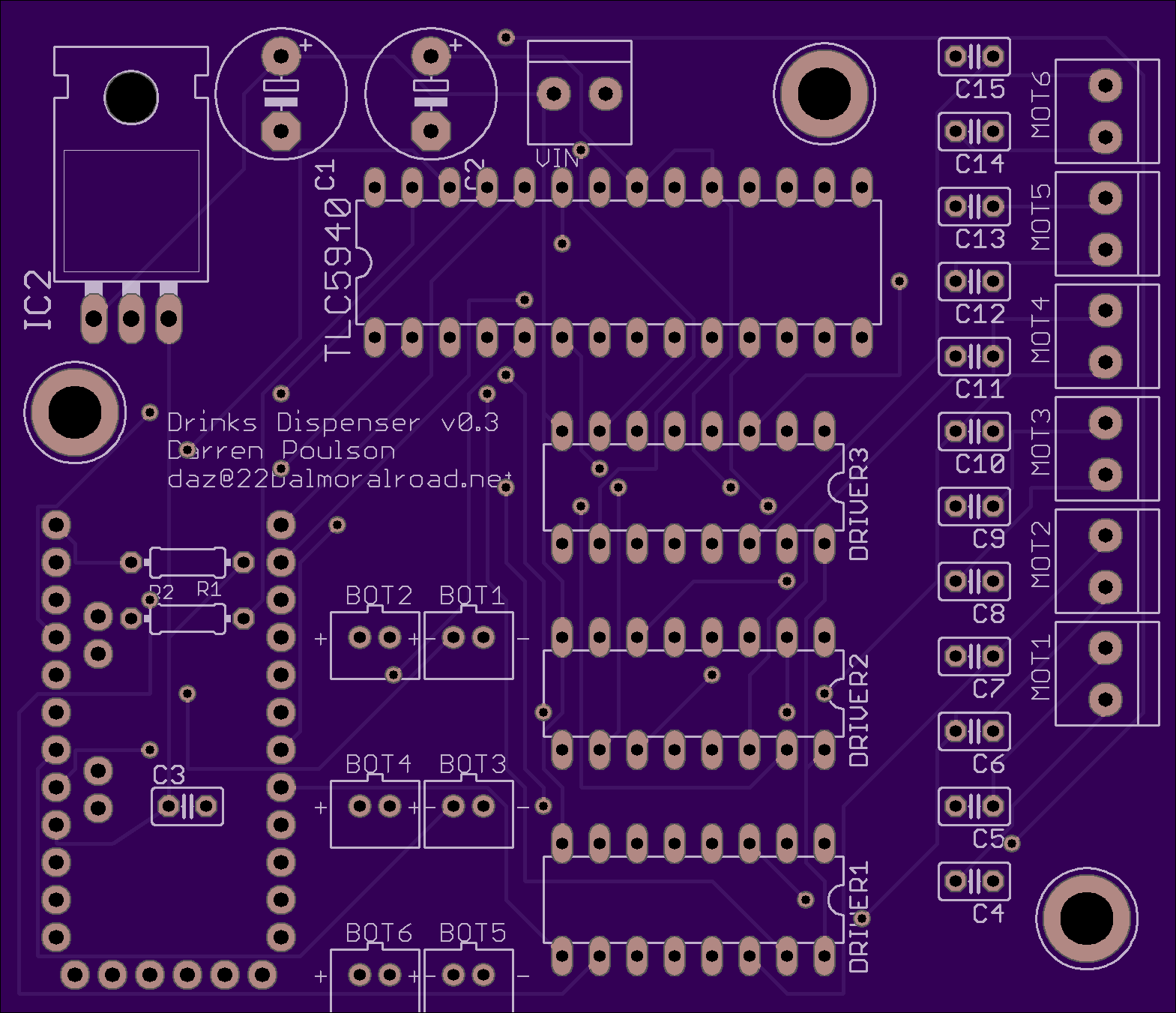

Top

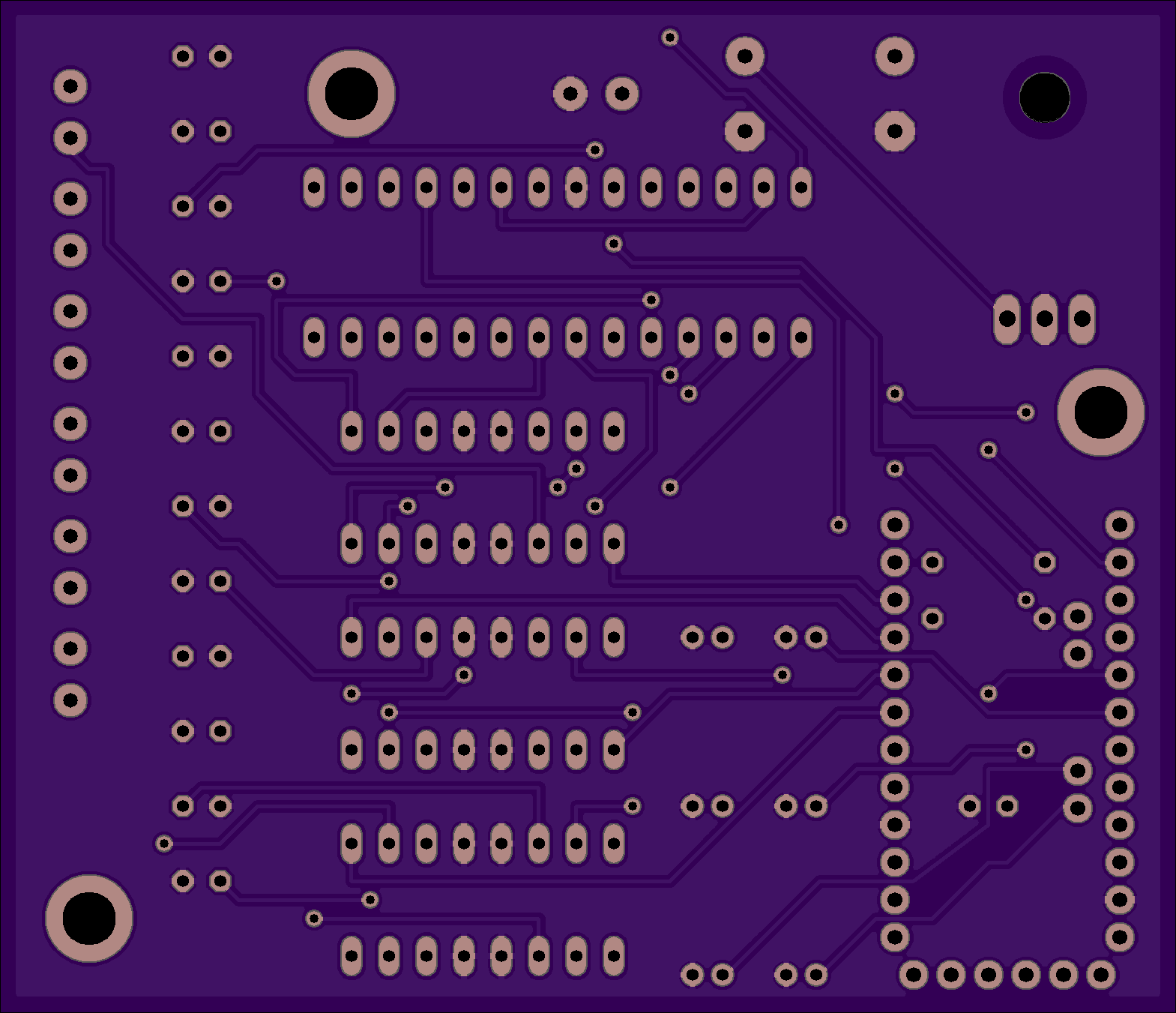

Bottom

2 layer board of 3.14x2.70 inches (79.71x68.58 mm).
Shared on February 20th, 2014 00:25.

A board to control up to 6 motors and 6 sensors. Will drive up to 6 standard DC motors, with a single sensor. Uses an arduino for control.

For PCB and other files:

https://github.com/dpoulson/drinks_dispenser

For more info:

http://www.22balmoralroad.net/wordpress/?cat=122
