ESP pinlet board for ESP8266

by DilThings.

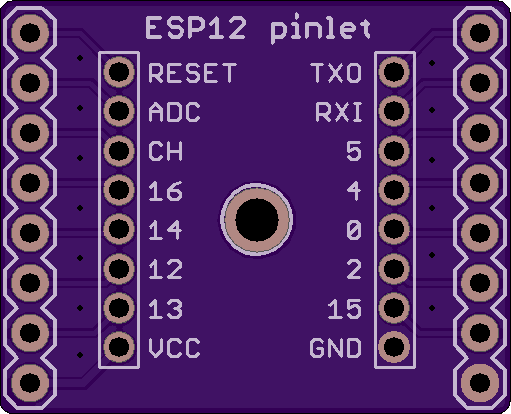

Top

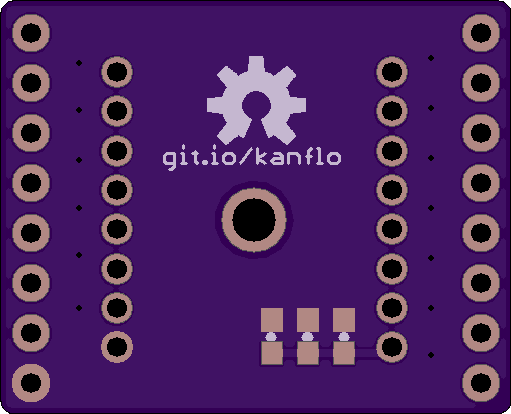

Bottom

2 layer board of 1.02x0.83 inches (25.93x20.96 mm).
Shared on February 24th, 2017 07:44.

This board provides a convenient conversion from the ESP8266 boards which have 2mm pitch pin holes to a 2.54mm standard breadboard pitch size. The pinlet board is from the ESPARDUCAM Project by kanflo. Pogo pins can be used as shown in the website to program multiple boards without soldering.

Original link to the GIT
