I2Chub

by Mateusz.

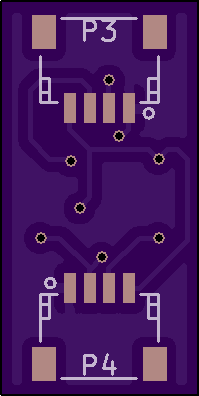

Top

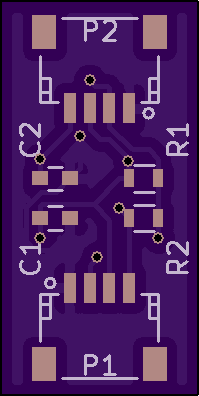

Bottom

2 layer board of 0.40x0.79 inches (10.11x20.12 mm).
Shared on April 24th, 2016 10:40.

I2C hub with four JST-SH 1.0 connectors and pull-ups

  • 4x JST-SH 1.0 (4pin) angled connector socket
  • 2x SMD 0603 resistors 10k

The KiCad 4.0.2 files are available at https://github.com/mashu/I2CHub
