EasyRaceLapTimer Configurable Transponder SMD R1.3

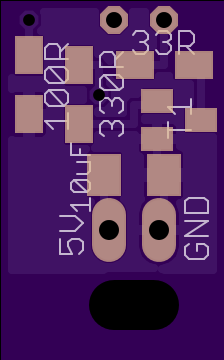

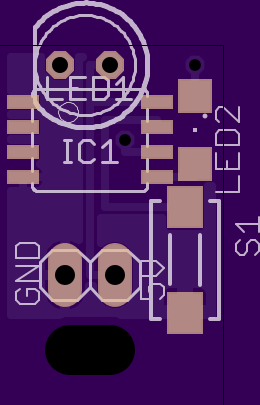

2 layer board of 0.45x0.72 inches (11.38x18.29 mm).
Shared on February 21st, 2016 22:58.

Please check out R1.4fixes some difficult soldering issues - fixes some soldering issues with R1.3

This is a new updated version of the Alexander Bierbrauer’s IR transponder for multirotor (drone) racing with EasyRaceLapTimer system. This model has a button to allow changing the transponder code at the field. This minimizes transponder conflicts, especially when racing with other groups using the same ERLT system.

This board is intended to be powered by 5V from a spare servo connector on your receiver or flight controller. The hole in the board is for cable strain relief.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project. This board has not been tested.

Parts to populate each board:

• ATTiny85 SOP8
• MMBT2222A
• 33Ohm 1206 Resistor
• 330Ohm 1206 Resistor
• 1206 SMD LED
• 100Ohm 1206 Resistor
• SMD Tact Switch 3x6x2.5mm
• Infrared 950nm LED LD274-3
• 12mm Heat Shrink
• 26AWG Servo Lead

Optional (but recommended):

• 10uF 1206 Capacitor

Helpful:

• SOP-8 programming clip
