Coilgun Optical Gate Processing Board

by Jefferson86.

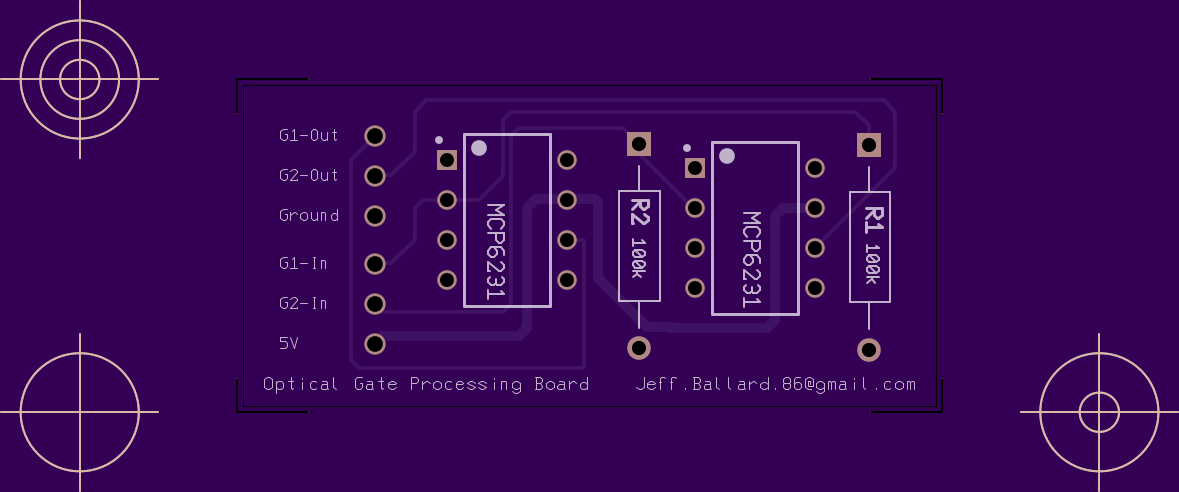

Top

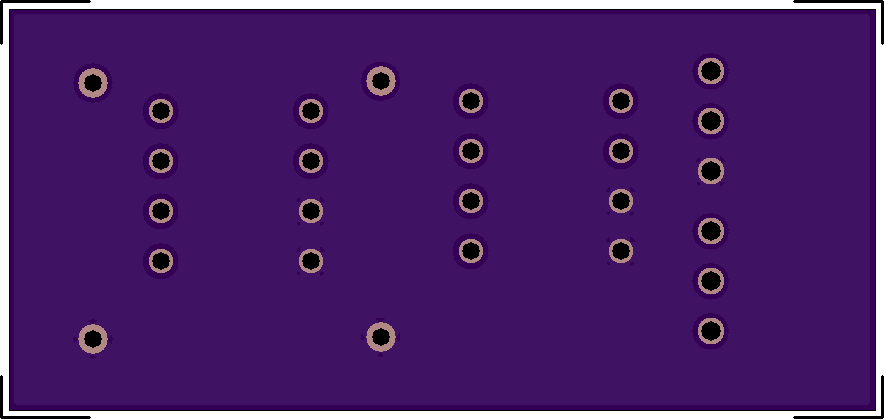

Bottom

2 layer board of 1.77x0.84 inches (44.88x21.26 mm).
Shared on May 29th, 2014 17:13.

Processes the signal from a 2 photodiodes and converts it into a 5v signal
