Z Probe Logic Level converter [semi-tested]

by Aerospacesmith.
Top
Bottom

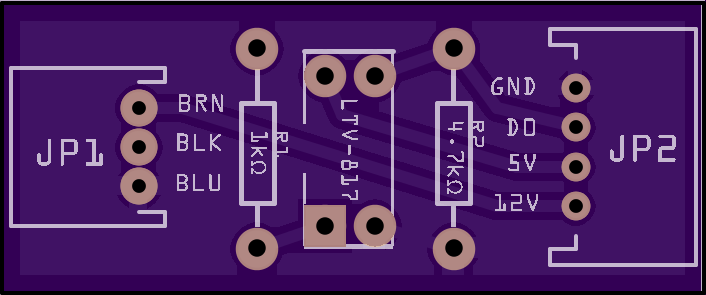

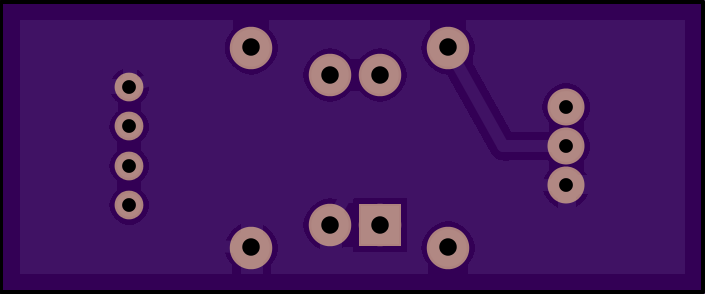

2 layer board of 1.41x0.59 inches (35.84x14.96 mm).
Shared on October 23rd, 2015 04:19.

You can purchase the parts using this Digikey BOM

Uses a LTV-817 optoisolator to convert a 12V signal to a 5V signal (Normally Closed). For use in a reprap auto-level using a induction or capacitance sensor.
