Boba Fett Chest v6

by thatdecade.

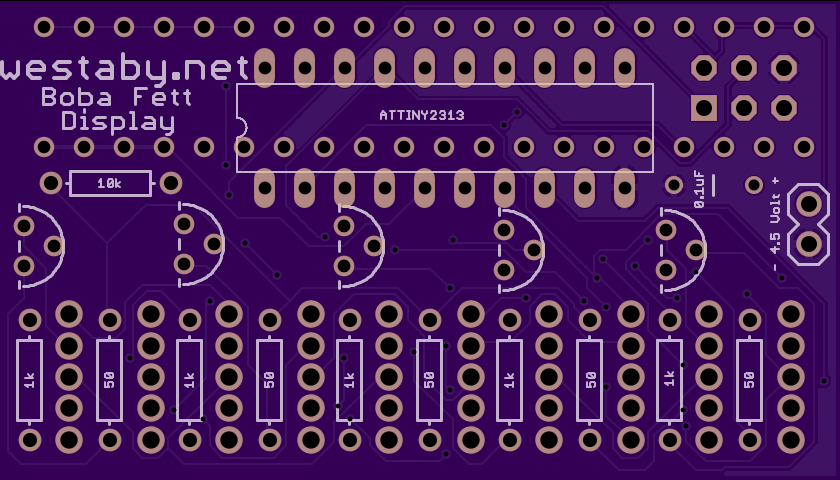

Top

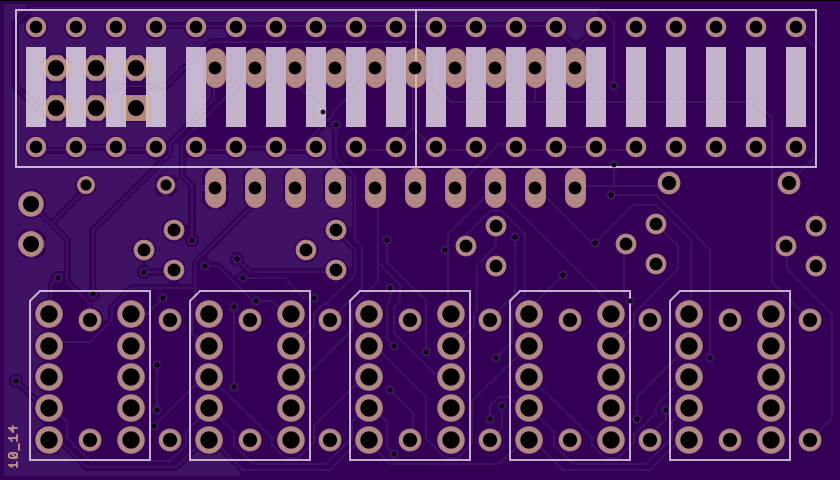

Bottom

2 layer board of 2.10x1.20 inches (53.37x30.48 mm).
Shared on February 17th, 2015 17:02.

This is a circuit for the display on Boba Fett’s chest plate. Lights are multiplexed, see schematic / source code. V6 - Fixed Reset Wiring.

Part List: http://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=d2514b0732

Source Code: https://github.com/thatdecade/Boba_Fett_Chest_Display

Cutting Diagram: http://docdro.id/G6BJcam

Pictures of previous revision: https://www.flickr.com/photos/dwest2/sets/72157650333089570/
