Shift Register to 16x2 LCD

by deisterhold.

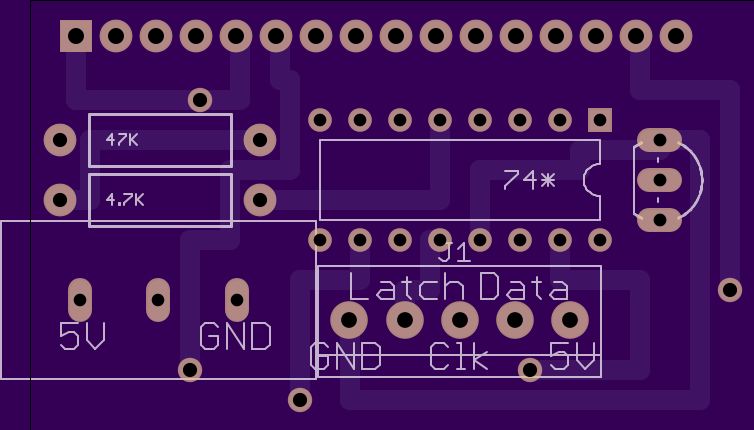

Top

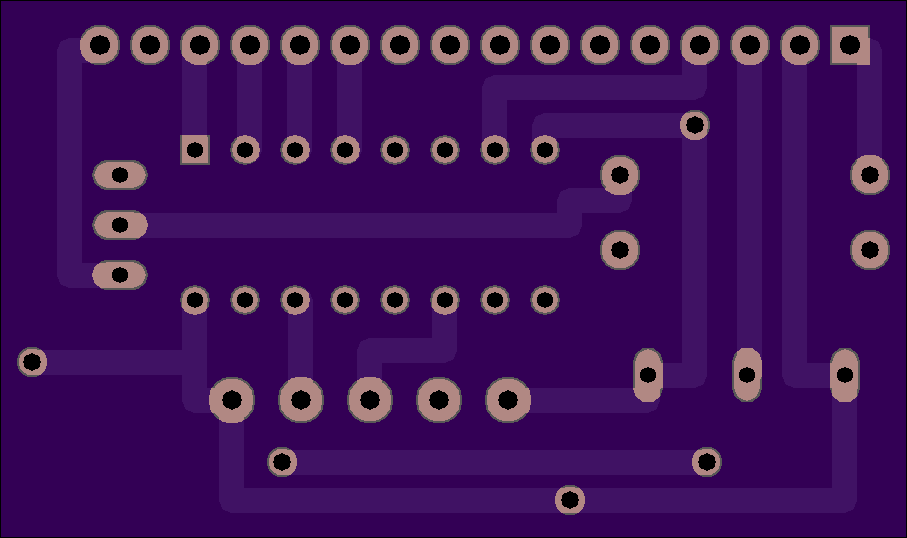

Bottom

2 layer board of 1.81x1.08 inches (46.02x27.31 mm).
Shared on May 21st, 2014 01:23.

Control a HD44780 LCD with a 595 Shift Register using only 3 IO pins.
