Avrrrinator B

by davidk.

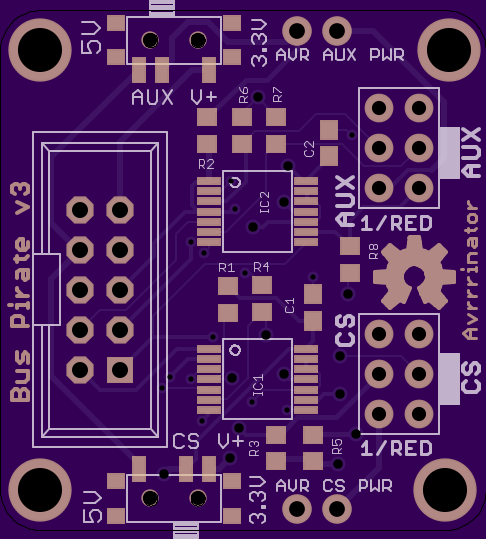

Top

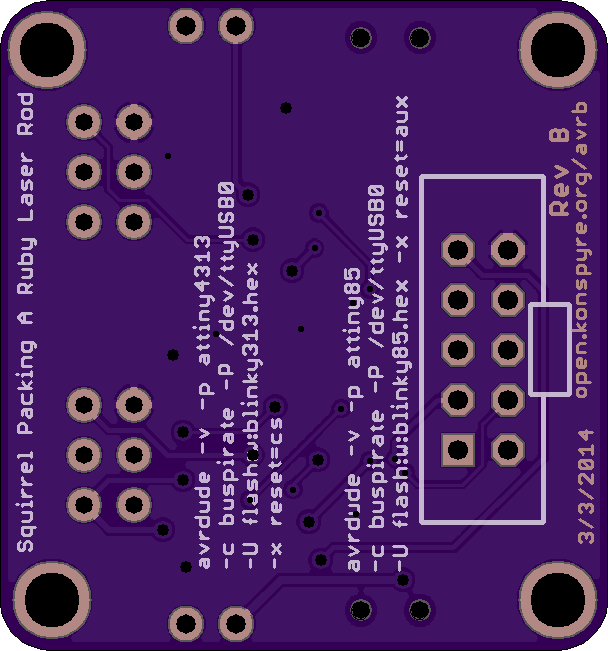

Bottom

2 layer board of 1.22x1.30 inches (30.86x32.99 mm).
Shared on May 19th, 2014 01:18.

Bus Pirate 3 to 2x AVR ISP (beta – the Google kind).

Information | Eagle sources/BOM
