test_klm

by PatBeirne.
Top
Bottom

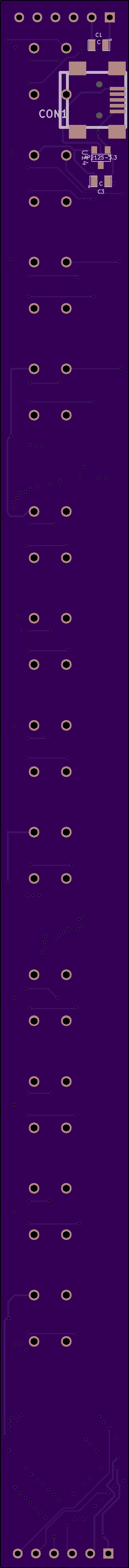

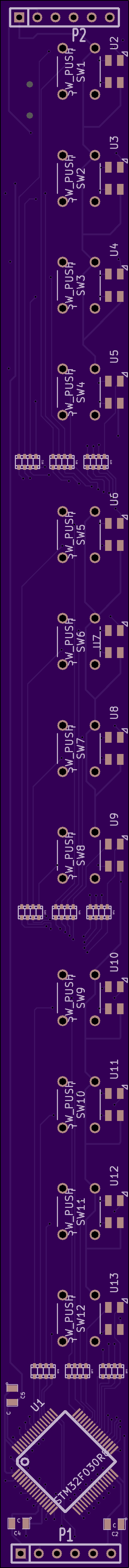

4 layer board of 0.71x8.67 inches (18.11x220.12 mm).
Shared on July 21st, 2014 11:17.

Module to manage 12 buttons & RGB lights, arranged in a single strip. This is basically an I/O expander; a Cortex-M0 processor handles all the peripherals. The UART handles both ISP and master-slave communication. Interface is 6 pins (2 power, 2 uart, 1 reset, 1 isp)
