HV Rescue 84 rev 2

by KO4XL.
Top
Bottom

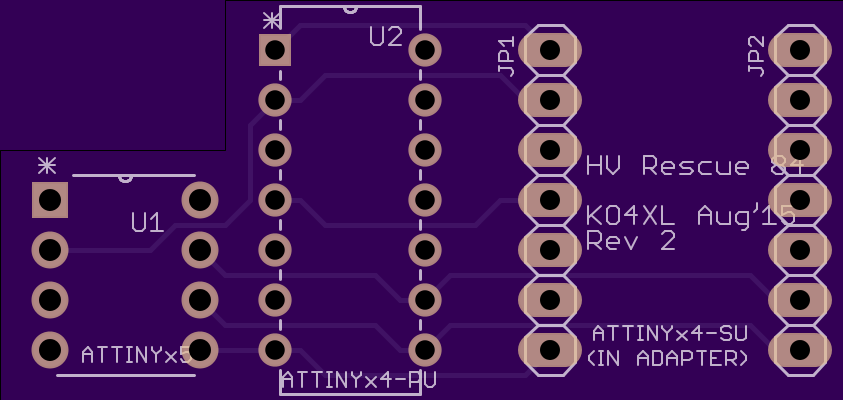

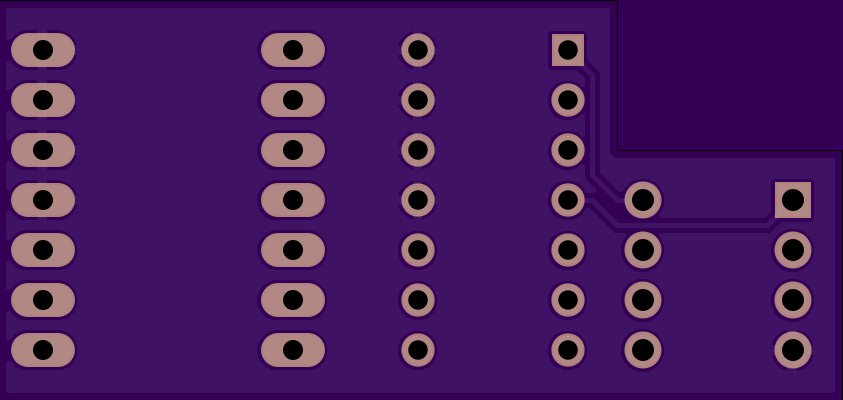

2 layer board of 1.69x0.80 inches (42.85x20.32 mm).
Shared on September 2nd, 2015 20:14.

Adapts ATtiny24/44/84/441/841 to MightyOhm HV Rescue Shield. Plugs into ATtiny85 socket on shield. Additional header supports SOIC-14 on DIP adapter. Rev 2 shrinks board and adds cutout for the Rescue Shield’s pushbutton.
