Attinier84 Motherboard PTH Mk 1.0

by schizobovine.

2 layer board of 1.22x1.14 inches (31.01x29.01 mm).
Shared on May 10th, 2015 01:43.

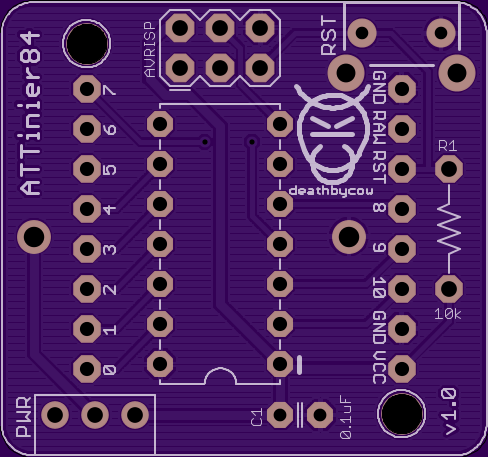

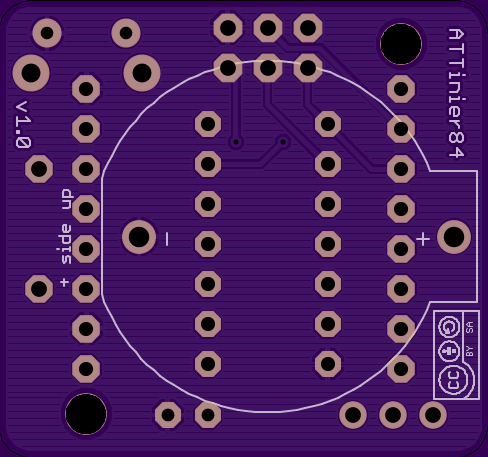

Smallish form factor ATTiny84 platform that doesn’t bother with USB. This is the microcontroller motherboard with a CR2032 holder on the back. Fits Hammond enclosure 1551G.

PTH-only version.

https://github.com/schizobovine/ATTinier84
