ATTinier84 AVR ISP Shield Mk 1.0

by schizobovine.

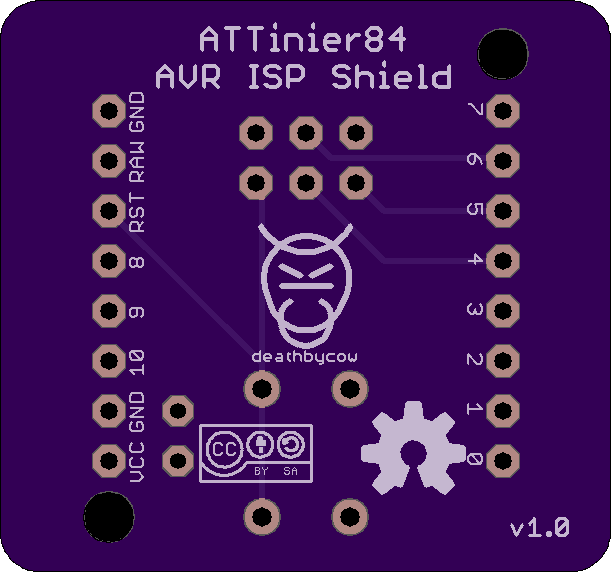

Top

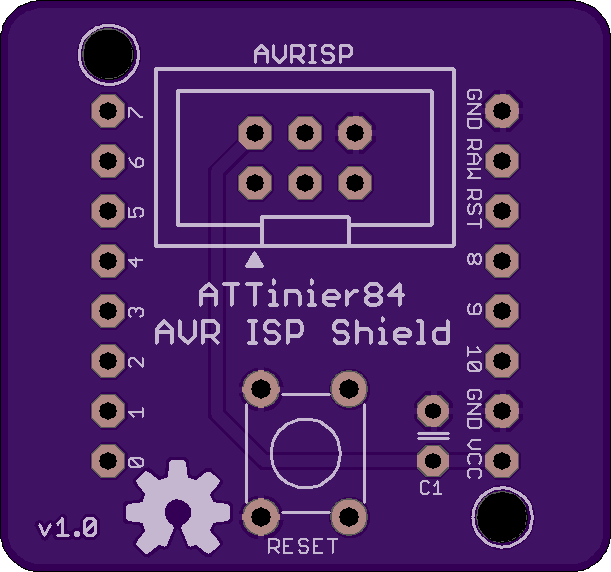

Bottom

2 layer board of 1.22x1.14 inches (31.01x29.01 mm).
Shared on March 2nd, 2016 08:49.

Smallish form factor ATTiny84 platform that doesn’t bother with USB. This a shield to program the motherboard (so the SMD version won’t need the ISP connector, which is a pain to layout while still using a large-ish coin cell battery).

https://github.com/schizobovine/ATTinier84
