CardosoTech.com Uniden DB9 to USB Converter v0.1L

by BlitzKriegBR.

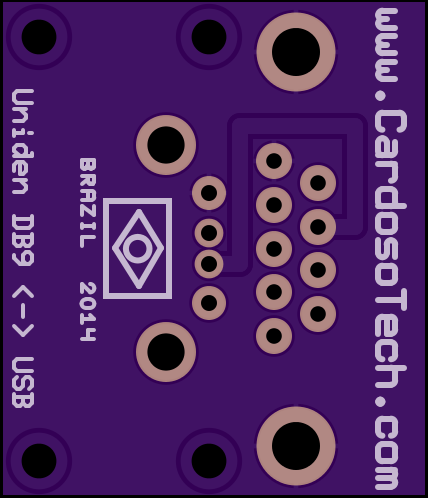

Top

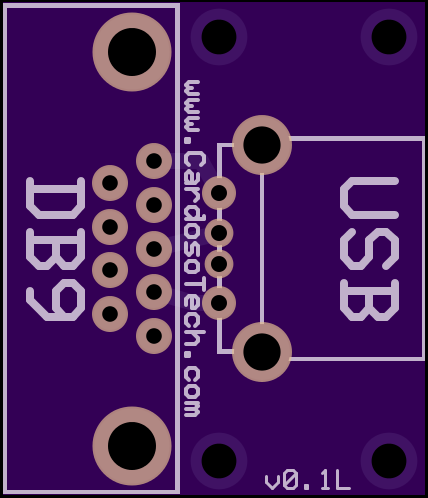

Bottom

2 layer board of 1.07x1.25 inches (27.18x31.67 mm).
Shared on November 13th, 2014 15:40.

This PCB is designed to help owners of the Uniden BCD396XT to connect their HTs to a standard USB port without need to buy the Uniden’s official data cable.

This design was inspirated by the webpage Uniden BCD396XT non-standard “USB” cable and a source of connectors

List of Materials to assemble the PCB:
- 1x USB-A 4-Pin Female 90 Degree DIP Socket Connector;
- 1x DB9 9 Pin 2 Row 90 Degree DIP D-sub Female (or Male, depending of your USB to RS-232 cable) Plug Connector;
