Super HardOn Pot Booster

by Das_TIER.

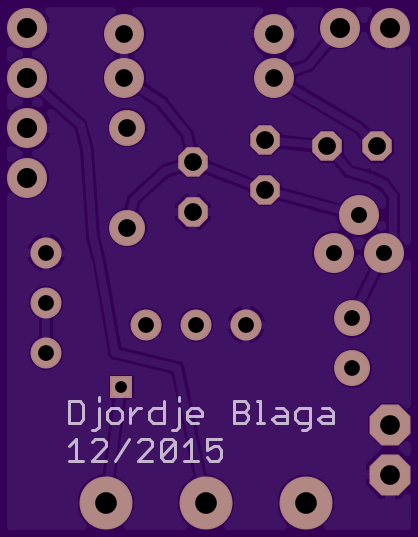

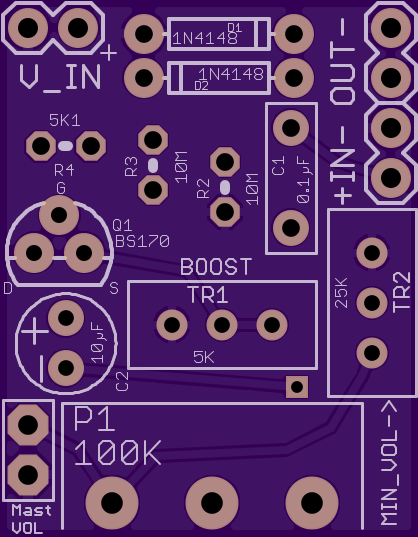

2 layer board of 0.84x1.08 inches (21.26x27.31 mm).
Shared on January 5th, 2016 11:00.

The ZVex Super HardOn in a compact format, will fit in most guitars. Component list: R2, R3: 10M| R4: 5K1| TR1: 5K 25-turn| TR2: 25K 25-turn| Trim Pots: LWH: 9.7mm;4.5mm;11mm| C1: 0.1µF 0.2 inch| C2: 10µF El 0.1 inch| Q1: BS170| D1+D2: 1N4148| P1: 100K 16mm print| Additional: 2-pin jumper| Header Pins for I/O and MastVOL jumper (2x, 0.1 inch)| Info: http://www.diystompboxes.com/smfforum/index.php?topic=96244.msg1043568#msg1043568
