Alice3v1

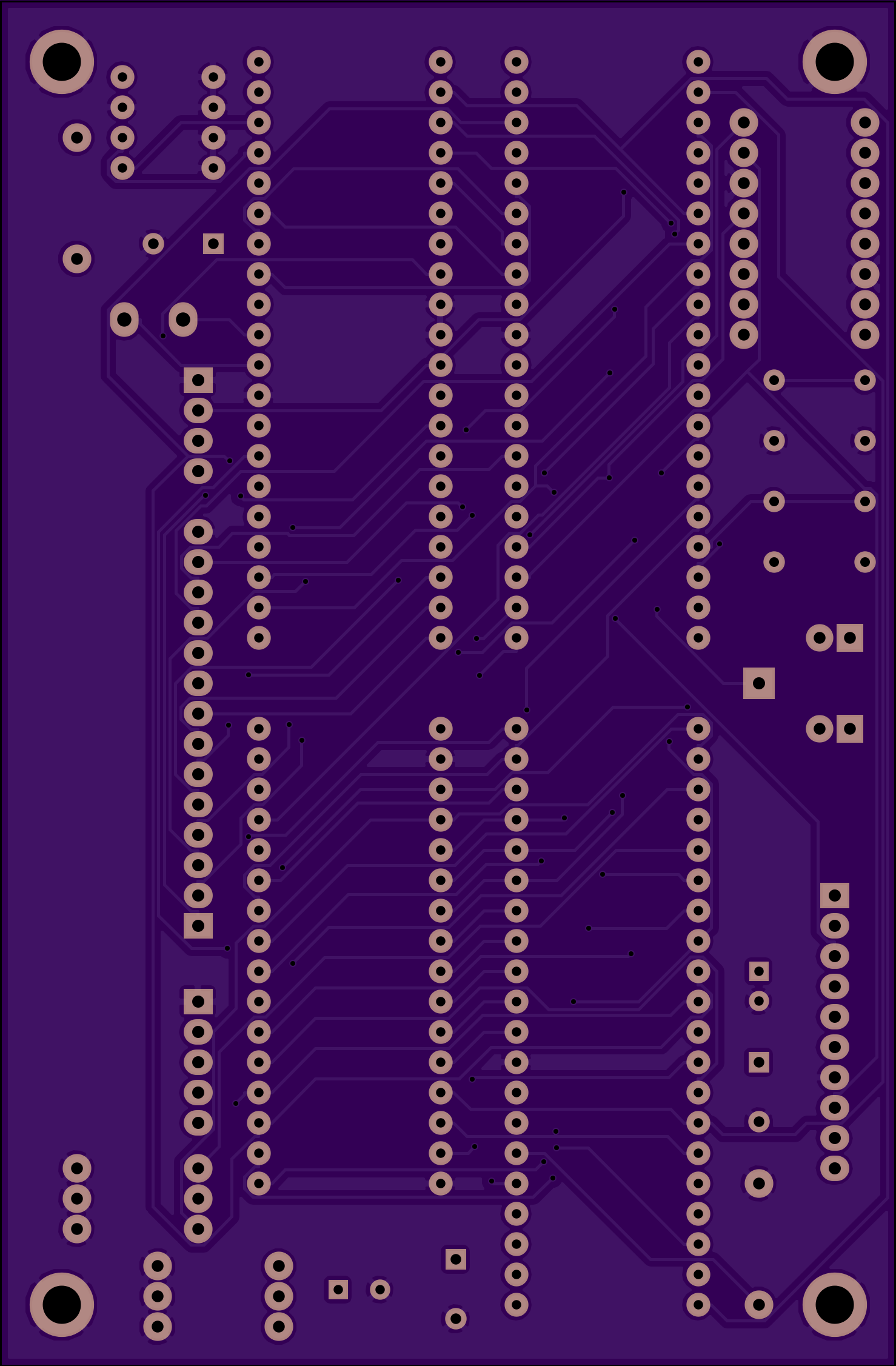

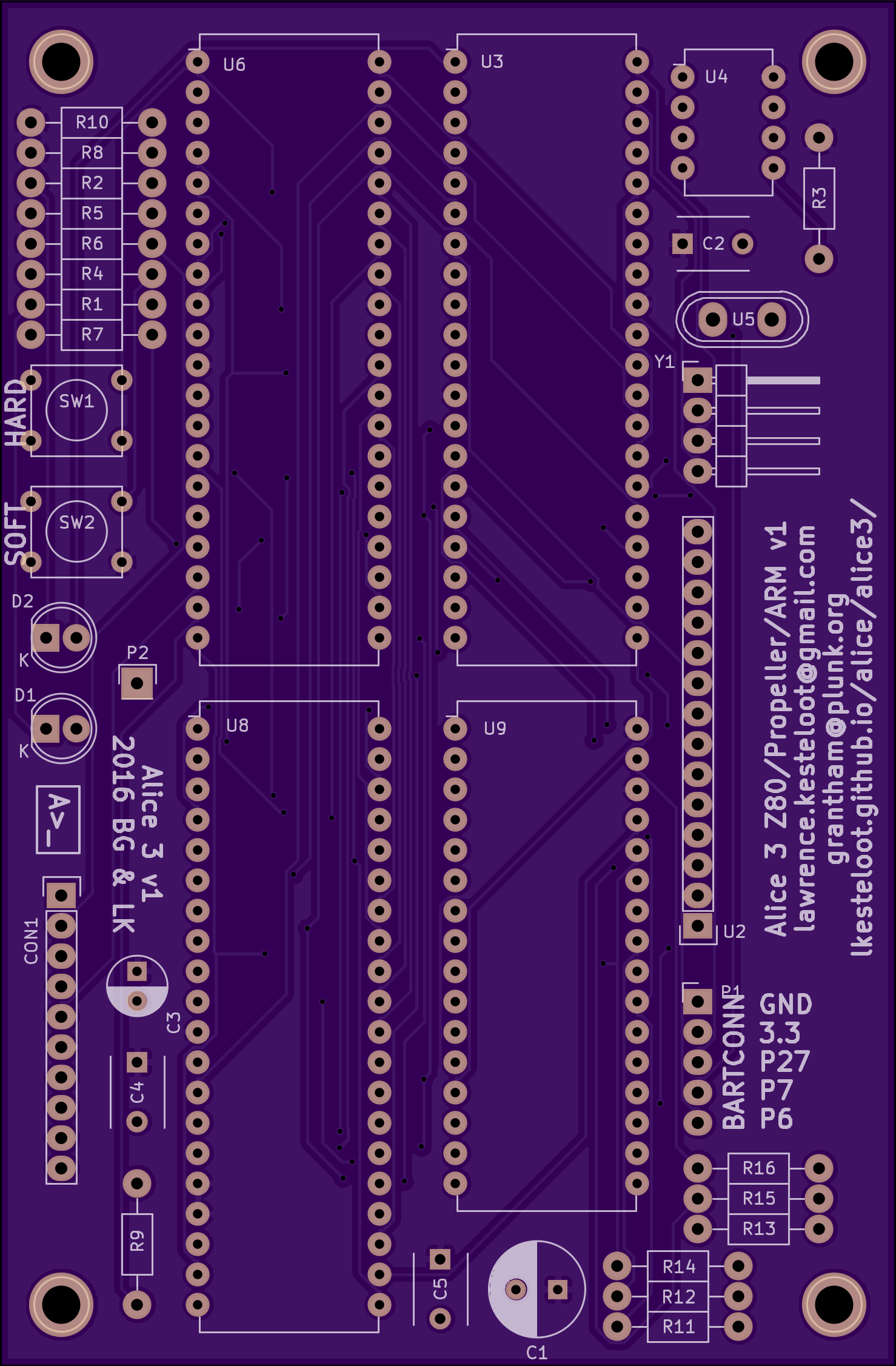

2 layer board of 2.96x4.51 inches (75.08x114.45 mm).
Shared on February 4th, 2016 03:46.

Alice 3 is a through-hole SBC featuring Z80, Propeller, and ARM Cortex 4F (STM32F4).

• The Z80 runs CP/M 2.2
• The Propeller handles VGA, and 3 pins are brought out to a 5-pin header including GND and 3.3V
• The ARM handles SD Card, PS/2 keyboard, and serial console.

We used this board as an opportunity to learn Propeller, ARM Cortex M series, and KiCAD Schematic Capture and PCB layout.

Firmware for the ARM and Propeller and the Z80 bootloader and CP/M BIOS are checked into Github.
