ABC

by Jamieson.

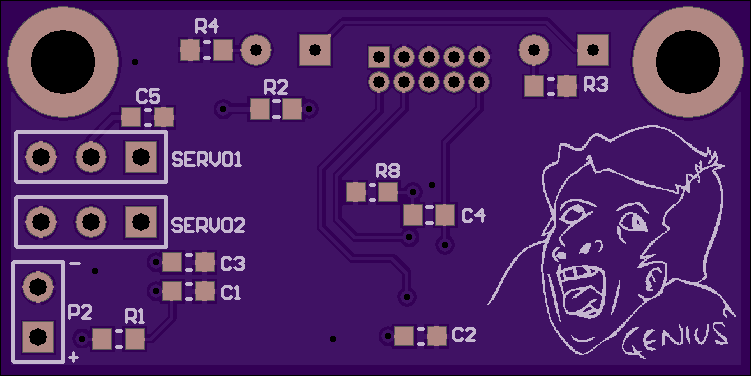

Top

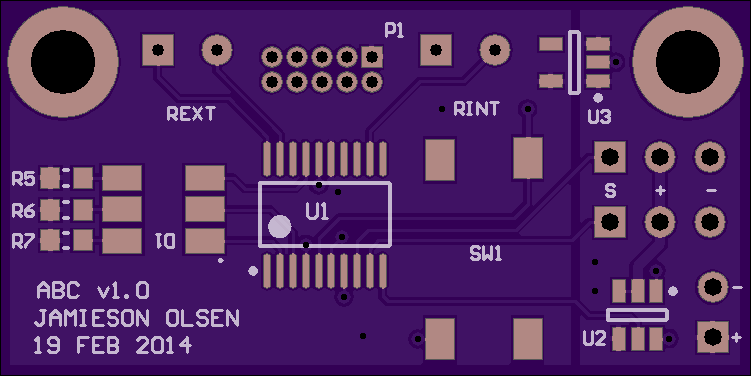

Bottom

2 layer board of 1.50x0.75 inches (38.13x19.08 mm).
Shared on February 19th, 2014 18:20.

Automatic Blind Controller. Based on LPC812 Cortex-M0+. The micro wakes up, senses light via CDS photocell and controls an RC servo installed in Venetian blinds. Includes pushbutton and RGB led. Designed for standby current of < 200uA.
