AM BCB Filter.

by DCorwin822.
Top
Bottom

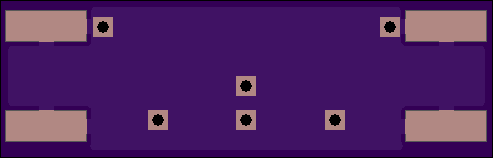

2 layer board of 0.98x0.32 inches (24.99x8.03 mm).
Shared on November 22nd, 2016 15:17.

BOM: http://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=39c0f0eaa2

Here’s where I got the original design and the schematic. http://swling.com/blog/2016/02/a-simple-homebrew-high-pass-filter/
