BLF17DD-Z

by Mattaus.
Top
Bottom

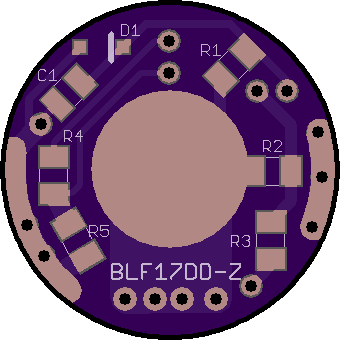

2 layer board of 0.68x0.68 inches (17.27x17.27 mm).
Shared on April 23rd, 2014 06:51.

Zener modified BLF17DD

17mm, 5mm contact pad

D1: 4.3V Zener SOD-323
R1: 200ohm 0805
R2: VDIV1 0805
R3: VDIV2 0805
R4: 100ohm 0805
R5: 10k 0805
C1: 0.1uF 0805
FET: 70N02
U1: ATTINY 20SSU
