CC1101 Rev. B
by
siahman.
2
layer board of
1.07x0.55
inches
(27.05x14.07
mm).
Shared on
August 20th, 2015 02:36.

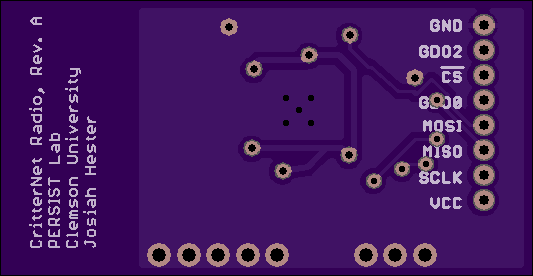

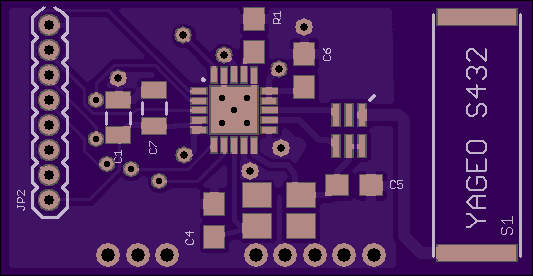

Tuned to 433MHz, very small, RF transceiver using TI’s standard CC1101 module, and a chip antenna. Parts needed are listed in the schematic.
