ICSP Clip

by CuriousTech.

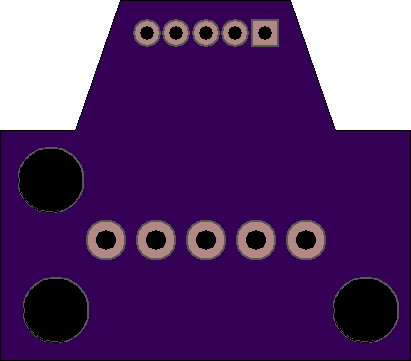

Top

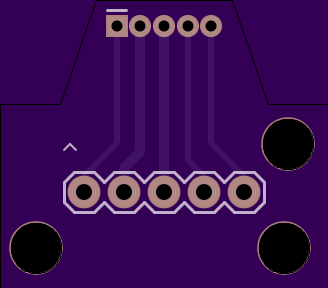

Bottom

2 layer board of 0.82x0.72 inches (20.83x18.29 mm).
Shared on July 24th, 2015 19:40.

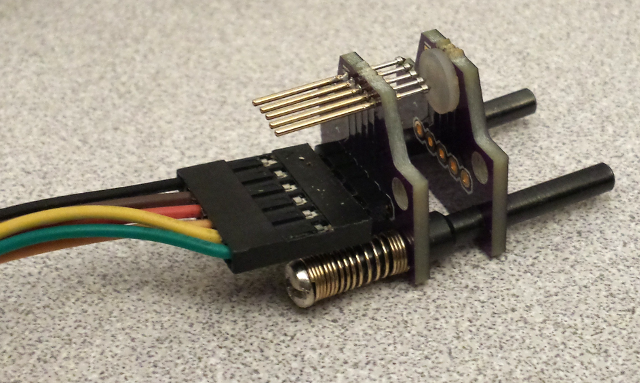

The original SparkFun PIC mini-icsp in clip-on form. A standard Dremel bit fits a 3.2mm hole perfectly and 2 can hold well by friction, but a pen spring fits a Dremel bit perfectly as well. P50-E2 pogos aligned by placing a PBC copy on the other end while soldering.

picclip
